DS-2CE16D1T-IT5(6mm)(B)

DS-2CE16D1T-IT5  HD1080P EXIR Bullet Camera    * 2 Megapixel high-performance CMOS  * Analog HD output, up to 1080P resolution  * True Day/Night, Smart IR  * EXIR technology, up to 80m IR distance  * IP66 weatherproof  * OSD menu  * Up the Coax(HIKVISION-C protocol)    Key Features                      Specifications          Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1930(H)*1088(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  3.6mm (6mm, 8mm, 12mm, 16mm optional)  Angle of View: 91.3°(3.6mm), 59.9°(6mm), 41.5°(8mm), 26.6°(12mm), 20.6°(16mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  Menu  Camera ID On/off (0-255)  AGC Support  D/N Mode Color/BW/Auto/EXT  White Balance Auto/User/Push/8000K/6000K/4200K/3000K  Privacy Mask On/Off, maximum 2 zones  Motion Detection On/Off, maximum 4 zones  BLC Su...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE16D1T-IT5

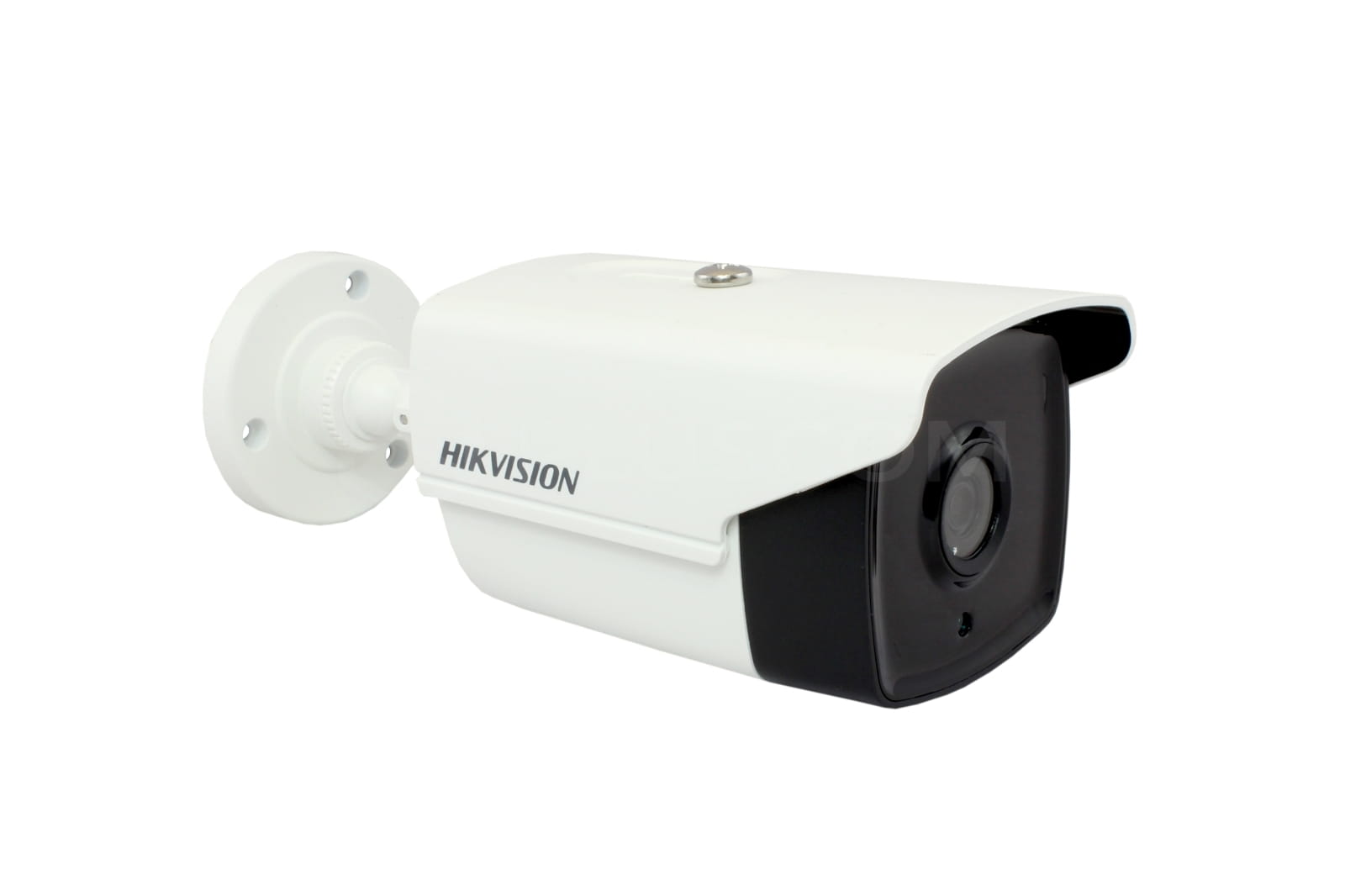

HD1080P EXIR Bullet Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* True Day/Night, Smart IR
* EXIR technology, up to 80m IR distance
* IP66 weatherproof
* OSD menu
* Up the Coax(HIKVISION-C protocol)

Key Features










Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1930(H)*1088(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
3.6mm (6mm, 8mm, 12mm, 16mm optional)
Angle of View: 91.3°(3.6mm), 59.9°(6mm), 41.5°(8mm), 26.6°(12mm), 20.6°(16mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
Camera ID On/off (0-255)
AGC Support
D/N Mode Color/BW/Auto/EXT
White Balance Auto/User/Push/8000K/6000K/4200K/3000K
Privacy Mask On/Off, maximum 2 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/Off
Language English/Chinese
Functions Digital noise reduction, Mirror
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 5W
Protection Level IP66
IR Range Up to 80m
Communication Up the coax, Protocol: HIKVISION-C(TVI output)
Dimensions 86.22x82.05x220.13mm(3.39”x3.23”x8.67”)
Weight 700 g

Order Models
DS-2CE16D1T-IT3







Dimensions

20150918
Accessories


DS-1280ZJ-XS DS-1H18 X41T
Junction box Video Balun Camera Tester
