DS-2CE16D5T-VFIT3(2.8-12mm)

www.hikvision.com    DS-2CE16D5T-(A)VFIT3  HD1080P EXIR Vari-focal Bullet Camera  t 2 Megapixel high-performance CMOS  t Analog HD output, up to 1080P resolution  t 2.8-12mm vari-focal lens  t True Day/Night  t OSD menu, 3D DNR, Smart IR  t EXIR vari-focal technology, up to 50m IR distance  t IP66 weatherproof  t UTC function(Pelco C protocol)  DS-2CE16D5T-VFIT3  DS-2CE16D5T-AVFIT3    DS-2CE16D5T-(A)VFIT3  Camera  Image Sensor2 MP CMOS Image Sensor  Signal SystemPAL/NTSC  Effective Pixels1920(H)*1080(V)  Min. Illumination  0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  0.014 Lux @ (F1.4,AGC ON),0 Lux with IR  Shutter Time1/25 s to 1/50,000 s  Lens  2.8-12mm @ F1.4  Angle of view: 103° - 32.1°  Lens Mountφ14  Day & NightICR  SynchronizationInternal synchronization  Video Frame Rate1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  CVBS Output 1Vp-p Composite Output(75/BNC)  S/N RatioMore than 52dB  Menu  SceneIndoor, Outdoor, Indoor1, LOW-LIGHT  Camera IDOn/off (15 characters, position programmable)  AGCSupport  D/N ModeColor/BW/EXT  White BalanceATW, AWC-SET, Indoor, Outdoor, Manual  Privacy MaskOn/Off, maximum 8 zones  Motion DetectionOn/Off, maximum...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com

DS-2CE16D5T-(A)VFIT3

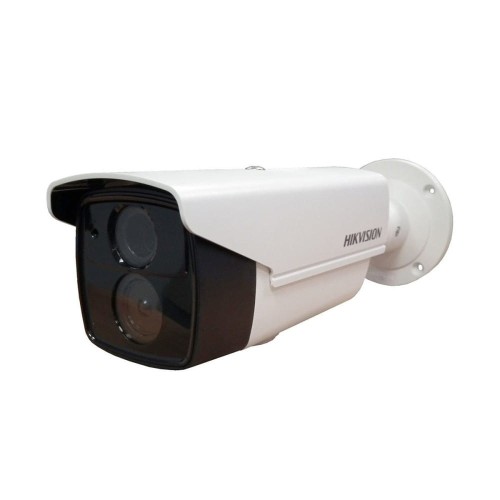

HD1080P EXIR Vari-focal Bullet Camera
t 2 Megapixel high-performance CMOS
t Analog HD output, up to 1080P resolution
t 2.8-12mm vari-focal lens
t True Day/Night
t OSD menu, 3D DNR, Smart IR
t EXIR vari-focal technology, up to 50m IR distance
t IP66 weatherproof
t UTC function(Pelco C protocol)
DS-2CE16D5T-VFIT3
DS-2CE16D5T-AVFIT3

DS-2CE16D5T-(A)VFIT3
Camera
Image Sensor2 MP CMOS Image Sensor
Signal SystemPAL/NTSC
Effective Pixels1920(H)*1080(V)
Min. Illumination
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time1/25 s to 1/50,000 s
Lens
2.8-12mm @ F1.4
Angle of view: 103° - 32.1°
Lens Mountφ14
Day & NightICR
SynchronizationInternal synchronization
Video Frame Rate1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
CVBS Output 1Vp-p Composite Output(75/BNC)
S/N RatioMore than 52dB
Menu
SceneIndoor, Outdoor, Indoor1, LOW-LIGHT
Camera IDOn/off (15 characters, position programmable)
AGCSupport
D/N ModeColor/BW/EXT
White BalanceATW, AWC-SET, Indoor, Outdoor, Manual
Privacy MaskOn/Off, maximum 8 zones
Motion DetectionOn/Off, maximum 4 zones
BLCSupport
Anti-ickerOn/off
Language
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,
Portuguese, Dutch, Turkish, Hebrew and Arabic
Functions
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction,
SMART D-ZOOM
General
Working Temperature/
Humidity
-30 °C - 60 °C (-22 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply
12 VDC
-A: 12 VDC, 24 VAC
Power Consumption
12V DC: Max. 7W
24V AC: Max. 8.5W
Weather Proof RatingsIP66
IR RangeUp to 50m
Communication
Up the coax(need UTC controller)
Protocol: Pelco-C(Coaxitron)
Dimensions300.82x100.76x107.55mm(11.84” x3.97” x4.23”)
Weight700g (1.54 lbs)
Key features
Dimensions
Available models

OSD

ICR

Scan

BLC

Accessories

Video balun
DS-1H18
2MP
