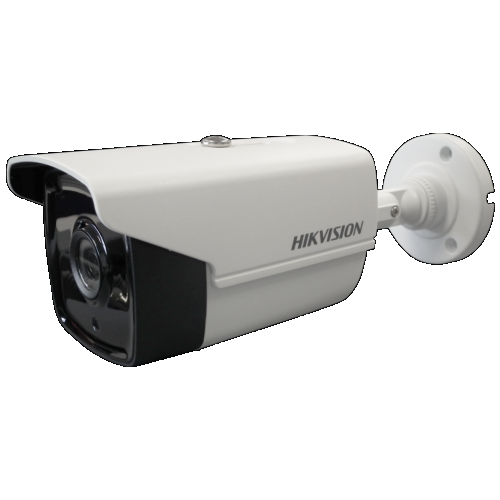

DS-2CE16D7T-IT3(8mm)

DS-2CE16D7T-IT3  HD1080P WDR EXIR Bullet Camera    * 2 Megapixel high-performance CMOS  * Analog HD output, up to 1080P resolution  * True Day/Night  * OSD menu, DNR, Smart IR  * True WDR, up to 120dB  * EXIR technology, up to 40m IR distance  * IP66 weatherproof  * Up the Coax(HIKVISION-C)  Key Features                      Specifications          Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1928(H)*1088(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional  Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.3°(12mm), 18.8°(16mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°  Synchronization Internal Synchronization  WDR 120dB  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  Menu  AGC Support  D/N Mode Color/BW/SMART  White Balance ATW/ MWB  BLC Support  Functions Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR  ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE16D7T-IT3
HD1080P WDR EXIR Bullet Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* True Day/Night
* OSD menu, DNR, Smart IR
* True WDR, up to 120dB
* EXIR technology, up to 40m IR distance
* IP66 weatherproof
* Up the Coax(HIKVISION-C)
Key Features










Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1928(H)*1088(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.3°(12mm), 18.8°(16mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°
Synchronization Internal Synchronization
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
AGC Support
D/N Mode Color/BW/SMART
White Balance ATW/ MWB
BLC Support
Functions Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 5W
Protection Level IP66
IR Range Up to 40m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7mmx81.6mmx226mm (3.41″x3.23″x8.67″)
Weight Approx. 680g (1.5lb)




Dimensions


DS-1280ZJ-XS DS-1H18 X41T
Junction Box Video Balun Camera Tester





Order Models
20160127
Accessories
DS-2CE16D7T-IT3
226mm(8.9")86.7mm(3.4")
81
.
6
mm
(
3
.
2
")
3-φ4.2mm(0.17")
φ55mm(2.2")
120°
120°
Unit: mm
