DS-2CE16D8T-IT3E(3.6mm)

Key Features   2 MP high performance CMOS   Ultra-Low Light   1920 x 1080 resolution   2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens   120 dB true WDR, 3D DNR   EXIR 2.0, Smart IR, up to 40 m IR distance   IP67   PoC.af   Up the Coax (HIKVISION-C)    DS-2CE16D8T-IT3E  2 MP Ultra-Low Light PoC EXIR Bullet Camera          Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens  Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm), 38° (8 mm), 24.4° (12 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) > 120 dB  Menu  AGC Support  Day/Night Mode Auto/Color/BW (Black and White)  White Balance ATW/MANUAL  Privacy Mask ON/OFF, 4 programmabl...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 2 MP high performance CMOS
 Ultra-Low Light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
 120 dB true WDR, 3D DNR
 EXIR 2.0, Smart IR, up to 40 m IR distance
 IP67
 PoC.af
 Up the Coax (HIKVISION-C)

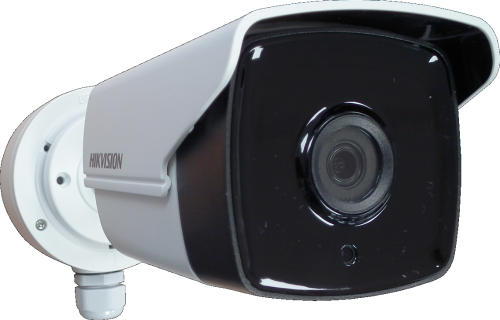

DS-2CE16D8T-IT3E
2 MP Ultra-Low Light PoC EXIR Bullet Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm), 38° (8 mm), 24.4° (12 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%/PoC.af
Power Consumption Max. 3.6 W
Ingress Protection IP67
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.41" x 3.23" x 8.67")
Weight Approx. 680 g (1.5 lb.)
Specification



Order Models
DS-2CE16D8T-IT3E
* PoC function is only available when cooperating with DS-1TPXXX.
Dimension
226 mm (8.9")
86.7 mm (3.4")
8
1
.
6

m
m

(
3
.
2
"
)
Φ 55 mm
(2.2")
120°
120°
3-Φ 4.2 mm
(0.17")


Accessory

DS-1280ZJ-XS
Junction Box

DS-1H18
Video Balun










010000170706
