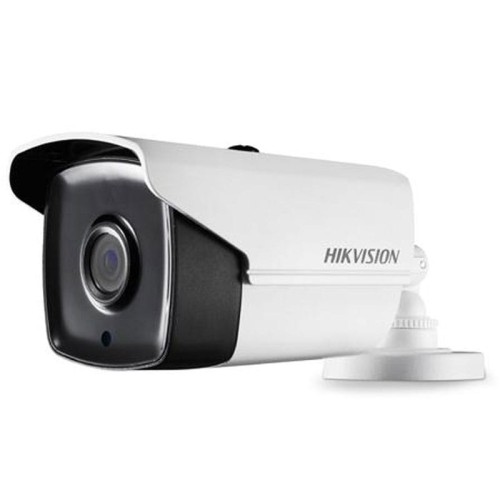

DS-2CE16F1T-IT5(16mm)(B)

DS-2CE16F1T- IT5  3M P EXIR Bullet Camera    * 3 Megapixel high-performance CMOS  * Analog HD output, up to 3MP resolution  * True Day/Night  * OSD menu, DNR, Smart IR  * EXIR technology, up to 80m IR distance  * IP66 weatherproof  * Up the Coax(HIKVISION- C)  Key Features                      Specifications    Camera  Image Sensor 3MP CMOS Image Sensor  Effective Pixels 2052 (H)* 1536(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  3.6mm, 6mm, 8mm, 12mm, 16mm optional  Angle of View: 67.8°(3.6mm), 44.6°(6mm), 31.6°(8mm), 20.2°(12mm), 15.8°(16mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 3 60°  Synchronization Internal Synchronization  Video Frame Rate 1920x 1536@18fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  Menu  AGC Support  D/N Mode Color/BW/SMART  White Balance ATW/ MWB  BLC Support  Functions Digital noise reduction, Mirror, SMART IR  General  Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE16F1T- IT5
3M P EXIR Bullet Camera

* 3 Megapixel high-performance CMOS
* Analog HD output, up to 3MP resolution
* True Day/Night
* OSD menu, DNR, Smart IR
* EXIR technology, up to 80m IR distance
* IP66 weatherproof
* Up the Coax(HIKVISION- C)
Key Features










Specifications

Camera
Image Sensor 3MP CMOS Image Sensor
Effective Pixels 2052 (H)* 1536(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
3.6mm, 6mm, 8mm, 12mm, 16mm optional
Angle of View: 67.8°(3.6mm), 44.6°(6mm), 31.6°(8mm), 20.2°(12mm), 15.8°(16mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 3 60°
Synchronization Internal Synchronization
Video Frame Rate 1920x 1536@18fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
AGC Support
D/N Mode Color/BW/SMART
White Balance ATW/ MWB
BLC Support
Functions Digital noise reduction, Mirror, SMART IR
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 5W
Protection Level IP66
IR Range Up to 8 0m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions
Weight Approx. 680g (1.5lb)





Dimensions
Order Models

DS-1280ZJ-XS DS-1H18 X41T
Junction Box Video Balun Camera Tester

Accessories
20160127
DS-2CE16F1T- IT5
226 mm(8.9 ")86.7 mm(3.4 ")
81
.6
mm
(3.2
")
3-φ4.2mm(0. 17 ")
φ55 mm(2.2 ")120 °
120 °
Unit: mm
