DS-2CE16H1T-IT3Z(2.8-12mm)

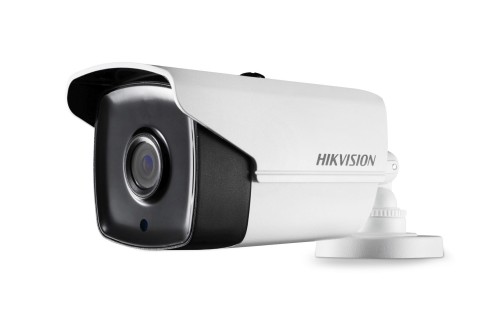

DS-2CE16H1T-(A)IT3Z  5 MP HD Motorized VF EXIR Bullet Camera    * 5 megapixel high-performance CMOS  * HD analog output, up to 5 MP resolution  * 2.8 to 12 mm motorized vari-focal lens  * True Day/Night  * OSD menu, DNR, Smart IR  * EXIR technology, up to 40 m IR distance  * IP67  * Up the Coax (HIKVISION-C)  Key Features                        Specifications          Camera  Image Sensor 5 MP CMOS image sensor  Effective Pixels 2592 (H) x 1944 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50,000 s  NTSC: 1/30 s to 1/50,000 s  Lens Motorized VF lens; 2.8 to 12 mm  Horizontal Field of View 27.7° to 86.8° (2.8 to 12 mm)  Lens Mount φ14  Day & Night ICR  Angle Adjustment Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°  Synchronization Internal synchronization  Video Frame Rate 2592 x 1944 @ 20fps  HD Video Output 1 HD analog output  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  Language English, Chinese  Functions Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixe...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE16H1T-(A)IT3Z
5 MP HD Motorized VF EXIR Bullet Camera

* 5 megapixel high-performance CMOS
* HD analog output, up to 5 MP resolution
* 2.8 to 12 mm motorized vari-focal lens
* True Day/Night
* OSD menu, DNR, Smart IR
* EXIR technology, up to 40 m IR distance
* IP67
* Up the Coax (HIKVISION-C)
Key Features











Specifications




Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2592 (H) x 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens Motorized VF lens; 2.8 to 12 mm
Horizontal Field of View 27.7° to 86.8° (2.8 to 12 mm)
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 2592 x 1944 @ 20fps
HD Video Output 1 HD analog output
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC±20%
-A: 12 VDC±20% 24 VAC±20%
Power Consumption
Max. 6 W
-A: Max. 9 W
Protection Level IP67
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 92 mm x 84.8 mm x 269.6 mm (3.62" x 3.34" x 3.34")
Weight Approx. 900 g (1.98 lb.)




Dimensions


DS-1275ZJ DS-1280ZJ-S DS-1H18
Vertical Pole Mounting Bracket Junction Box Video Balun




Order Models
Accessories
DS-2CE16H1T-IT3Z, DS-2CE16H1T-AIT3Z
0100001061230
Φ 85.3 mm
(Φ 3.36")
Φ 4.3 mm
(Φ 0.17")
Φ 70 mm (Φ 2.76")
120°120°
92 mm (3.6")
8
9

m
m

(
3
.
5
"
)
269.6 mm (10.6")
155.6 mm
(6.2")
241.3 mm (9.5")
