DS-2CE16H1T-IT3ZE(2.8-12mm)

Key Features   5 MP high-performance CMOS   2560 x 1944 resolution   2.8 mm to 12 mm motorized vari-focal lens   EXIR 2.0, smart IR, up to 40 m IR distance   OSD menu, DNR, DWDR   IP67   PoC.at   Up the coax (HIKVISION-C)    DS-2CE16H1T-IT3ZE  5 MP VF Bullet Camera        Camera  Image Sensor 5 MP CMOS image sensor  Resolution 2560 (H) x 1944 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 to 12 mm motorized vari-focal lens  Horizontal Field of View 90.4° to 28°  Lens Mount Φ14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°  Synchronization Internal synchronization  Frame Rate  2560 x 1944@20fps, 2560 x 1944@12.5fps  2560 x 1440@30fps, 2560 x 1440@25fps (default)  1920 x 1080@30fps, 1920 x 1080@25fps  * Under the PoC mode, 2560 x 1944@12.5fps is not available.  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Language English, Chinese  Functions Brightness, Sharpness, DNR, Mi...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 5 MP high-performance CMOS
 2560 x 1944 resolution
 2.8 mm to 12 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 40 m IR distance
 OSD menu, DNR, DWDR
 IP67
 PoC.at
 Up the coax (HIKVISION-C)

DS-2CE16H1T-IT3ZE

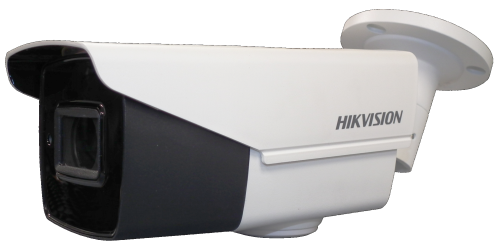

5 MP VF Bullet Camera



Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 to 12 mm motorized vari-focal lens
Horizontal Field of View 90.4° to 28°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate
2560 x 1944@20fps, 2560 x 1944@12.5fps
2560 x 1440@30fps, 2560 x 1440@25fps (default)
1920 x 1080@30fps, 1920 x 1080@25fps
* Under the PoC mode, 2560 x 1944@12.5fps is not available.
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English, Chinese
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%/PoC.at
Power Consumption Max. 8 W
Protection Level IP67
Material Metal & Plastic
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 92 mm x 84.8 mm x 269.6 mm (3.62" x 3.34" x 10.61")
Weight Approx. 900 g (1.98 lb.)
Specification



Order Models
DS-2CE16H1T-IT3ZE
Dimension
92 mm (3.6")
8
9

m
m

(
3
.
5
"
)
269.6 mm (10.6")
155.6 mm (6.2")
241.3 mm (9.5")
3-Ø 4.3 mm(0.17")
120°
120°
3 x 10-24UNC-2A
Ø 85.3 mm(3.36")
Ø 70 mm(2.76")


Accessory

DS-1280ZJ-S
Junction Box

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1H18
Video Balun















0300001070808
