DS-2CE16H1T-IT5(8mm)

DS-2CE16H1T-IT5  5 MP HD EXIR Bullet Camera    * 5 megapixel high-performance CMOS  * HD analog output, up to 5 MP resolution  * 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens  * True Day/Night  * OSD menu, DNR, Smart IR  * EXIR technology, up to 80 m IR distance  * IP67  * Up the Coax (HIKVISION-C)  Key Features                        Specifications          Camera  Image Sensor 5 MP CMOS image sensor  Resolution 2592 (H) x 1944 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50,000 s  NTSC: 1/30 s to 1/50,000 s  Lens 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens  Horizontal Field of View 70.1° (3.6 mm), 46° (6 mm), 32.5° (8 mm), 20.9° (12 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°  Synchronization Internal synchronization  Video Frame Rate 2592 x 1944 @ 20fps  HD Video Output 1 HD analog output  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  Language English, Chinese  Functions Brightness, Sharpness, Digital noise reductio...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

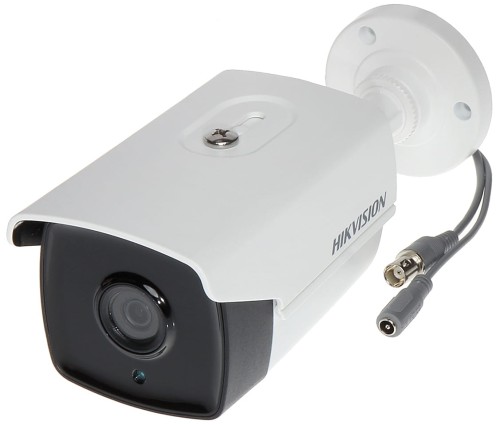

DS-2CE16H1T-IT5
5 MP HD EXIR Bullet Camera

* 5 megapixel high-performance CMOS
* HD analog output, up to 5 MP resolution
* 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
* True Day/Night
* OSD menu, DNR, Smart IR
* EXIR technology, up to 80 m IR distance
* IP67
* Up the Coax (HIKVISION-C)
Key Features











Specifications




Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2592 (H) x 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Horizontal Field of View 70.1° (3.6 mm), 46° (6 mm), 32.5° (8 mm), 20.9° (12 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 2592 x 1944 @ 20fps
HD Video Output 1 HD analog output
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensation)
Power Supply 12 VDC±30%
Power Consumption Max. 5 W
Protection Level IP67
IR Range Up to 80 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.41" x 3.23" x 8.67")
Weight Approx. 680 g (1.5 lb.)




Dimensions

Order Models

DS-1280ZJ-XS DS-1H18
Junction Box Video Balun




Accessories
0100001061230

DS-2CE16H1T-IT5
226 mm (8.9")
86.7 mm (3.4")
8
1
.
6

m
m

(
3
.
2
"
)
Φ 55 mm
(2.2")
120°
120°
3-Φ 4.2 mm
(0.17")
