DS-2CE16H5T-IT3(6mm)

Key Features   5 megapixel high-performance CMOS   HD analog output, up to 5 MP resolution   2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens   True Day/Night   OSD menu, DNR, Smart IR   EXIR technology, up to 40 m IR distance   IP67   Up the Coax (HIKVISION-C)    DS-2CE16H5T-IT3  5 MP Ultra-Low Light EXIR Bullet Camera        Camera  Image Sensor 5 MP CMOS image sensor  Effective Pixels 2560 (H) x 1944 (V)  Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens  Horizontal Field of View 91° (2.8 mm), 70° (3.6 mm), 45° (6 mm), 41° (8 mm), 26° (12 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°  Synchronization Internal synchronization  Frame Rate 2560 x 1944 @ 20fps  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Language English, Chinese  Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR  Interface  Video Out...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 5 megapixel high-performance CMOS
 HD analog output, up to 5 MP resolution
 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
 True Day/Night
 OSD menu, DNR, Smart IR
 EXIR technology, up to 40 m IR distance
 IP67
 Up the Coax (HIKVISION-C)

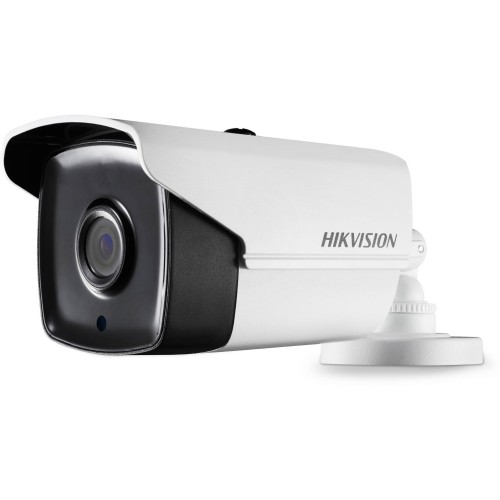

DS-2CE16H5T-IT3
5 MP Ultra-Low Light EXIR Bullet Camera



Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2560 (H) x 1944 (V)
Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Horizontal Field of View 91° (2.8 mm), 70° (3.6 mm), 45° (6 mm), 41° (8 mm), 26° (12 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate 2560 x 1944 @ 20fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 V DC ±25%
Power Consumption Max. 3.5 W
Protection Level IP67
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.41" x 3.23" x 8.67")
Weight Approx. 680 g (1.5 lb.)
Specification



Order Models
DS-2CE16H5T-IT3
Dimension












Accessory

DS-1280ZJ-XS
Junction Box

DS-1H18
Video Balun


















010000170307
226 mm (8.9")
86.7 mm (3.4")
8
1
.
6

m
m

(
3
.
2
"
)
Φ 55 mm
(2.2")
120°
120°
3-Φ 4.2 mm
(0.17")

0100001070527
