DS-2CE16H5T-IT5(12mm)

Key Features   5 megapixel high-performance CMOS   HD analog output, up to 5 MP resolution   3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens   True Day/Night   OSD menu, DNR, Smart IR   EXIR technology, up to 80 m IR distance   IP67   Up the Coax (HIKVISION-C)    DS-2CE16H5T-IT5  5 MP Ultra-Low Light EXIR Bullet Camera        Camera  Image Sensor 5 MP CMOS image sensor  Resolution 2560 (H) x 1944 (V)  Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens  Horizontal Field of View 70° (3.6 mm), 45° (6 mm), 41° (8 mm), 26° (12 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°  Synchronization Internal synchronization  Frame Rate 2560 x 1944 @ 20fps  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Language English, Chinese  Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR  Interface  Video Output 1 HD analog output  General...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 5 megapixel high-performance CMOS
 HD analog output, up to 5 MP resolution
 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
 True Day/Night
 OSD menu, DNR, Smart IR
 EXIR technology, up to 80 m IR distance
 IP67
 Up the Coax (HIKVISION-C)

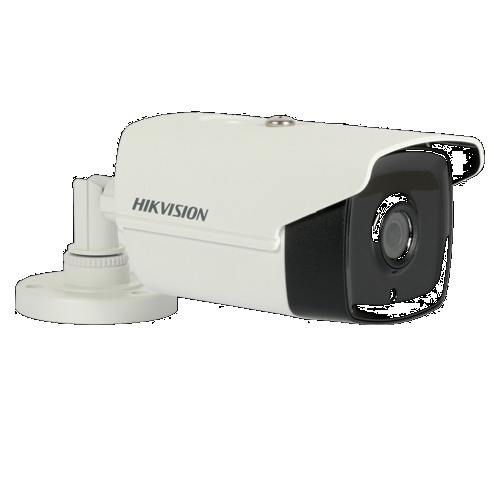

DS-2CE16H5T-IT5
5 MP Ultra-Low Light EXIR Bullet Camera



Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Horizontal Field of View 70° (3.6 mm), 45° (6 mm), 41° (8 mm), 26° (12 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate 2560 x 1944 @ 20fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 V DC ±25%
Power Consumption Max. 5.5 W
Protection Level IP67
Material Metal
IR Range Up to 80 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.41" x 3.23" x 8.67")
Weight Approx. 680 g (1.5 lb.)
Specification



Order Models
DS-2CE16H5T-IT5
Dimension












Accessory

DS-1280ZJ-XS
Junction Box

DS-1H18
Video Balun


















010000170307
226 mm (8.9")
86.7 mm (3.4")
8
1
.
6

m
m

(
3
.
2
"
)
Φ 55 mm
(2.2")
120°
120°
3-Φ 4.2 mm
(0.17")

0100001070527
