DS-2CE16H8T-IT3(12mm)

Key Features   5 MP high performance CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens   EXIR 2.0, smart IR, up to 60 m IR distance   OSD menu, 3D DNR, 120 dB true WDR   IP67   Up the coax (HIKVISION-C)    DS-2CE16H8T-IT3  5 MP Bullet Camera          Camera  Image Sensor 5 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50,000 s  NTSC: 1/30 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens  Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) ≥  Menu  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  BLC (Backlight Compensation) Yes  WDR Yes  3D DNR Level 1 to 10  Privacy Mask 4 pr...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 5 MP high performance CMOS
 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
 EXIR 2.0, smart IR, up to 60 m IR distance
 OSD menu, 3D DNR, 120 dB true WDR
 IP67
 Up the coax (HIKVISION-C)

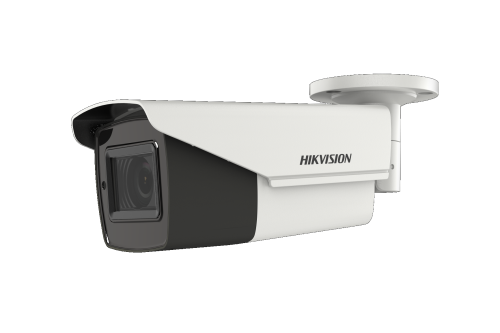

DS-2CE16H8T-IT3
5 MP Bullet Camera




Camera
Image Sensor 5 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) ≥
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
WDR Yes
3D DNR Level 1 to 10
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
Language English
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 6 W
Protection Level IP67
Material
Front cover: Metal
Main body: Plastic
Bracket: Metal
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 81.9 mm x 86.7 mm x 217.9 mm (3.22" x 3.41" x 8.58" )
Weight Approx. 435 g (0.96 lb.)
Specification




Order Models
DS-2CE16H8T-IT3
Dimension
217.9 mm (8.58" )
79.5 mm (3.13" )
86.7 mm (3.41" )
81
.9
mm
(3
.22
" )


Accessory





DS-1280ZJ-XS
Junction Box


0100001080620
