DS-2CE17H0T-IT3E(2.8mm)(C)

DS-2CE17H0T-IT3E(C)  5 MP PoC Fixed Bullet Camera                     High quality imaging with 5 MP, 2560 x 1944 resolution   2.8 mm, 3.6 mm and 6 mm fixed focal lens   Up to 40 m IR distance for bright night imaging   Water and dust resistant (IP67)                   Specification  Camera  Image Sensor 5 MP CMOS  Max. Resolution 2560 (H) x 1944 (V)  Min. Illumination 2.8 mm, 3.6 mm and 6 mm: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Day & Night ICR  Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°  Signal System PAL/NTSC  Lens  Lens Type 2.8 mm, 3.6 mm and 6 mm fixed focal lens  Focal Length & FOV  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV: 72°  Lens Mount M12  Image  Image Parameters Switch STD/HIGH-SAT  Image Settings Brightness, Sharpness, Smart IR  Frame Rate 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps  Day/Nig...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE17H0T-IT3E(C)

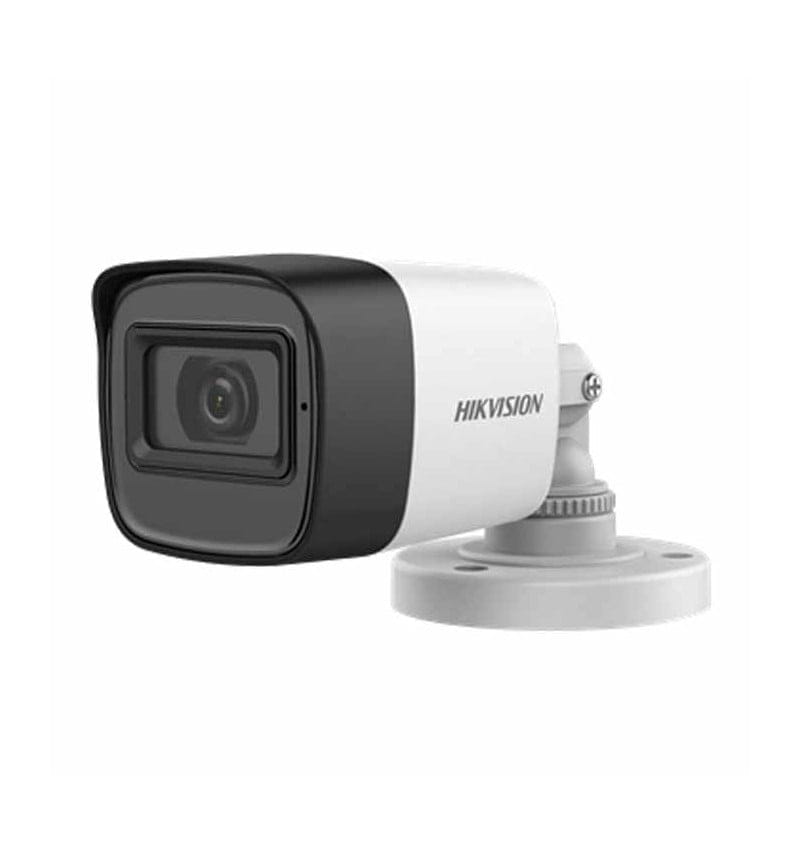

5 MP PoC Fixed Bullet Camera









 High quality imaging with 5 MP, 2560 x 1944 resolution
 2.8 mm, 3.6 mm and 6 mm fixed focal lens
 Up to 40 m IR distance for bright night imaging
 Water and dust resistant (IP67)








 Specification
Camera
Image Sensor 5 MP CMOS
Max. Resolution 2560 (H) x 1944 (V)
Min. Illumination 2.8 mm, 3.6 mm and 6 mm: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°
6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV: 72°
Lens Mount M12
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, Smart IR
Frame Rate 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR, BLC, HLC, Global
Noise Reduction 2D DNR
White Balance Auto/Manual
AGC Yes
Interface
Video Output 1 HD analog output
General
Material
Front Cover: Metal
Main Body: Plastic
Dimension 216.6 mm x 78.9 mm x 75.4 mm (8.53" x 3.10" x 2.97")
Weight Approx. 380 g (0.84 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply
12 VDC ±25%/PoC.af
*You are recommended to use one power adapter for one camera, and use 2-pin
power supply for long-distance power supply.
Consumption Max. 4 W
IR Range Up to 40 m
Approval
Protection IP67





 Dimension



 Accessory
 Optional
DS-1280ZJ-XS
Junction box








 Available Model
DS-2CE17H0T-IT3E(C)
