DS-2CE56C0T-IRPF HD 720p Indoor IR Turret Camera * 1 megapixel high performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62 dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W IR Range Up to 20 m Dimensions Φ 89.9 mm x 70.1 mm (3.54" x 2.76") Weight 250 g (0.55 lb.) Order Mode...
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-2CE56C0T-IRPF

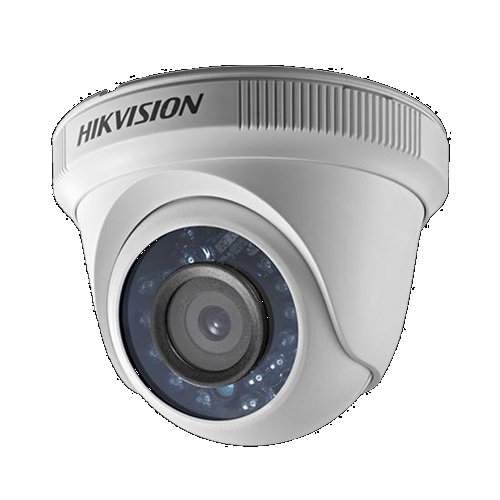

HD 720p Indoor IR Turret Camera
* 1 megapixel high performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
Key Features
Specifications
Camera
Image Sensor 1 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) x 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
IR Range Up to 20 m
Dimensions Φ 89.9 mm x 70.1 mm (3.54" x 2.76")
Weight 250 g (0.55 lb.)
Order Model
DS-2CE56C0T-IRPF
7
0.
1
m
m
(
2
.
7
6"
)
Φ
8
9.
9
m
m
(
3
.
5
4"
)
3
-
Φ
4
.
2
m
m
(
0
.
1
7"
)
Φ
7
2
m
m
(
2
.
8
3"
)
1
2
0
°
Dimensions
Accessories
DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Bracket Vertical Pole Mounting Bracket Corner Mounting Bracket Video Balun
X41T DS-1280ZJ-XS
Camera Tester Junction Box
