DS-2CE56C0T-IT1F(2.8mm)
product unavailable
zur Wunschliste hinzufügenBeschreibung

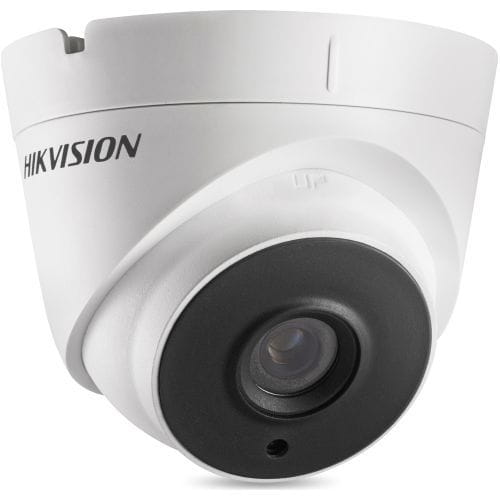

DS-2CE56C0T-IT1F HD 720p EXIR Turret Camera * 1 megapixel high performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 3.6 mm (2.8 mm, 6 mm, 8 mm optional) Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm), 38.6°(8 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions Φ 110 mm x 93.2 mm (4.33" x 3.67") ...
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-2CE56C0T-IT1F
HD 720p EXIR Turret Camera
* 1 megapixel high performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66
Key Features
Specifications
Camera
Image Sensor 1 MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) x 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
3.6 mm (2.8 mm, 6 mm, 8 mm optional)
Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm), 38.6°(8 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m
Dimensions Φ 110 mm x 93.2 mm (4.33" x 3.67")
Weight 350 g (0.77 lb.)
Order Model
DS-2CE56C0T-IT1F
9
3.
2
m
m
(
3
.
6
7"
)
3-Φ 4.2 mm (0.17")
1
2
0
°
Φ 85 mm (3.35")
Φ 110 mm (4.33")
Dimensions
Accessories
DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Bracket Vertical Pole Mounting Bracket Corner Mounting Bracket Video Balun
X41T DS-1280ZJ-S DS-1281ZJ-S
Camera Tester Junction Box Inclined Ceiling Mounting Bracket
