DS-2CE56C2T-IRM(2.8mm)(C)

DS-2CE56C2T-IRM  1.3MP CMOS IR Turret Camera    * 1.3 Megapixel high-performance CMOS  * Analog HD output, up to 720P resolution  * True Day/Night  * DNR, Smart IR  * Up to 20m IR distance  * IP66 weatherproof      Key Features                Specifications          Camera  Image Sensor 1.3MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1280(H)*960(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm optional  Angle of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°  Synchronization Internal synchronization  Video Frame Rate 720p@25fps/720p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  General  Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)  Power Supply 12 VDC±15%  Power Consumption Max. 4W  Protection Level IP66  IR Range Up to 20m  Dimensions 89.6 x 59.1 mm (3.53” x 2.33”)  Weight 340 g    Order Models  DS-2CE56C2T-IRM         ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE56C2T-IRM

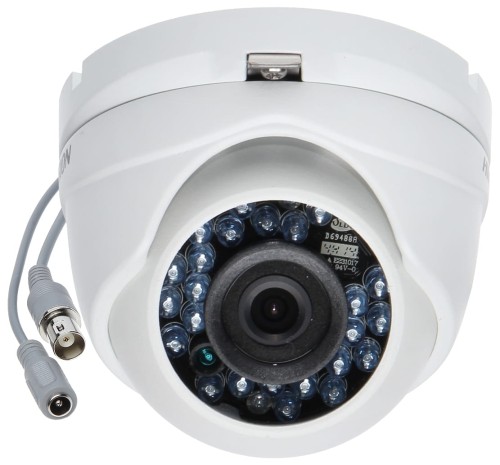

1.3MP CMOS IR Turret Camera

* 1.3 Megapixel high-performance CMOS
* Analog HD output, up to 720P resolution
* True Day/Night
* DNR, Smart IR
* Up to 20m IR distance
* IP66 weatherproof


Key Features







Specifications




Camera
Image Sensor 1.3MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1280(H)*960(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm optional
Angle of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 20m
Dimensions 89.6 x 59.1 mm (3.53” x 2.33”)
Weight 340 g

Order Models
DS-2CE56C2T-IRM





Dimensions

20150918
Accessories

DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18 DS-TT-X41T
Wall Mounting Vertical Pole Mounting Corner Mounting Video Balun TVI Tester




DS-1280ZJ-XS
Junction box

Unit: mm
