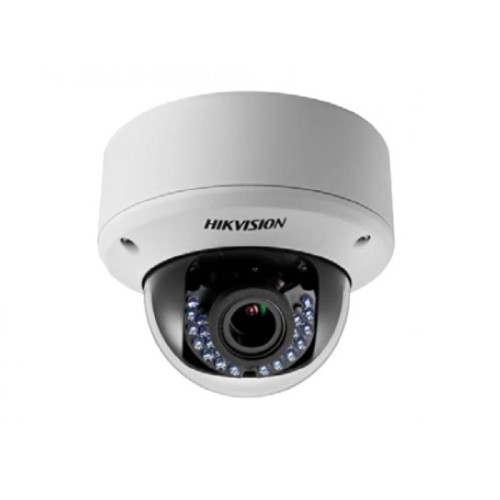

DS-2CE56C5T-AVPIR3(2.8-12mm)(B)

www.hikvision.com    DS-2CE56C5T-(A)VPIR3  HD720P Turbo HD Outdoor Vandal Proof IR Dome Camera    t HD720P Video Output  t Adopt HDTVI Technology  t True Day/Night  t 2.8 - 12mm vari-focal lens  t OSD menu, 3D DNR, Smart IR  t Up to 40m IR distance  t IP66 weatherproof & Vandal Proof  t Low illumination  t Up the Coax(via coaxial cable)  DS-2CE56C5T-AVPIR3  DS-2CE56C5T-VPIR3  1/3  CMOS    OSD    ICR    Scan    BLC    DS-2CE56C5T-(A)VPIR3  Camera  Image Sensor1 / 3" Progressive Scan CMOS  Signal SystemPAL / NTSC  Effective Pixels1305(H)*1049(V)  Min. Illumination0.001 Lux @(zF1.2,AzGC ON), 0 Lux with IR  Shutter speed  PAL: 1 / 50 s to 1 / 50,000 s  NTSC: 1 / 60 s to 1 / 50,000 s  Lens  2.8-12mm @ F1.4  Angle of view: 78° - 28°  Lens Mountφ14  Angle AdjustmentPan: 0 - 355°, Tilt: 0 - 80°, Rotation: ± 90°  Day & NightICR  SynchronizationInternal synchronization  Video Frame RatePAL: 720p@50fps / NTSC: 720p@60fps  HD Video Output 1 Analog HD output  CVBS Output 1Vp-p Composite Output(75 / BNC)  S / N RatioMore than 62dB  Menu  Automatic ExposureGlobe AE / DWDR  AGCLow / Middle / High / Off  Slow ShutterSupport  White BalanceAuto ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com

DS-2CE56C5T-(A)VPIR3
HD720P Turbo HD Outdoor Vandal Proof IR Dome Camera

t HD720P Video Output
t Adopt HDTVI Technology
t True Day/Night
t 2.8 - 12mm vari-focal lens
t OSD menu, 3D DNR, Smart IR
t Up to 40m IR distance
t IP66 weatherproof & Vandal Proof
t Low illumination
t Up the Coax(via coaxial cable)
DS-2CE56C5T-AVPIR3
DS-2CE56C5T-VPIR3
1/3
CMOS

OSD

ICR

Scan

BLC

DS-2CE56C5T-(A)VPIR3
Camera
Image Sensor1 / 3" Progressive Scan CMOS
Signal SystemPAL / NTSC
Effective Pixels1305(H)*1049(V)
Min. Illumination0.001 Lux @(zF1.2,AzGC ON), 0 Lux with IR
Shutter speed
PAL: 1 / 50 s to 1 / 50,000 s
NTSC: 1 / 60 s to 1 / 50,000 s
Lens
2.8-12mm @ F1.4
Angle of view: 78° - 28°
Lens Mountφ14
Angle AdjustmentPan: 0 - 355°, Tilt: 0 - 80°, Rotation: ± 90°
Day & NightICR
SynchronizationInternal synchronization
Video Frame RatePAL: 720p@50fps / NTSC: 720p@60fps
HD Video Output 1 Analog HD output
CVBS Output 1Vp-p Composite Output(75 / BNC)
S / N RatioMore than 62dB
Menu
Automatic ExposureGlobe AE / DWDR
AGCLow / Middle / High / Off
Slow ShutterSupport
White BalanceAuto / Manual
D / N ModeColor / BW / SMART IR
3D DNRLow / Middle / High / Off
Motion DetectionSupport, maximum 4 zones
Privacy MaskOn / Off, maximum 8 zones
UTC FunctionSupport
LanguageEnglish / Chinese
Function
Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom,
Mirror
General
Working Temperature / Humidity
-30 °C - 60 °C (-22 °zF - 140 °zF)
Humidity 90% or less (non-condensing)
Power Supply12 VDC ; -A: 12 VDC, 24 VAC
Power Consumption12 VDC: Max. 3.5W ; 24 VAC: Max. 5W
Weather Proof RatingsIP66
IR RangeUp to 40m
Impact ProtectionIEC60068-2-75 test, Eh, 20J; EN50102, up to IK10.
Communication
Up the coax(need UTC controller)
Protocol: Pelco-C(Coaxitron)
Dimensionsφ145.3 x 124.2 mm (φ5.72p x 4.89p)
Weight880 g (1.95 lb)

Unit: mm

Key features
Dimensions
Available models
Accessories
Video balun
DS-1H18
