DS-2CE56C5T-VFIT3

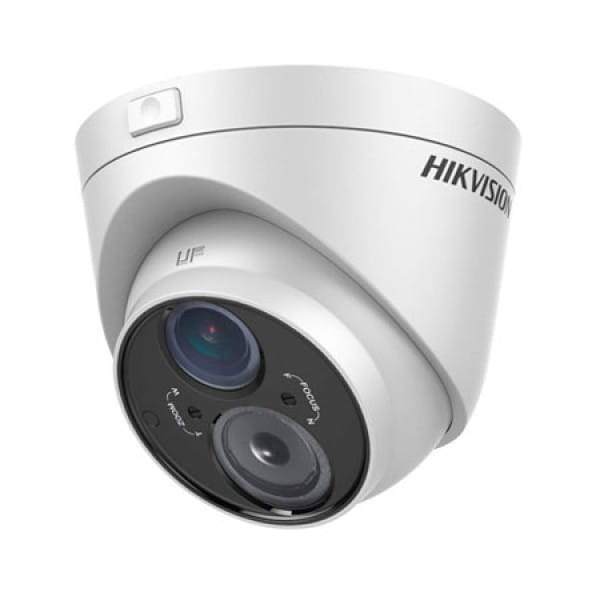

HD720p TurboHD Outdoor Varifocal EXIR Turret Camera
• HD720p Video Output
• HD-TVI Standard Technology
• True Day/Night
• 2.8 mm to 12 mm Vari focal Lens
• OSD Menu, 3D DNR, Smart IR
• EXIR Technology, 50 Meters IR Distance
• Superior Low Light Performance
•Up-the-Coax (UTC) OSD Menu Control

DS-2CE56C5T-VFIT3
Camera
Image Sensor 1/3" progressive scan CMOS
Signal System NTSC
Effective Pixels 1280 x 720
Minimum Illumination 0.0014 lux @ (f/1.4, AGC on), 0 lux with IR
Shutter Speed 1/60 sec. to 1/50,000 sec.
Lens2.8 mm to 12 mm, ƒ/1.4
Angle of view: 78° to 28°
Lens Mount φ 14
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotation: 0° to 355°
Day/Night IR cut filter
Synchronization Internal synchronization
Video Frame Rate 720p @ 60 fps
HD Video Output 1 analog HD output
CVBS Output1 V p-p composite output (75 Ω/BNC)
S/N Ratio More than 62 dB
Menu
Automatic Exposure Globe AE/DWDR
AGCLow/middle/high/off
Slow Shutter Supported
D/N Mode Color/BW/SMART IR
White BalanceAuto/manual
3D DNRLow/middle/high/off
Motion DetectionSupported, maximum 4 zones
Privacy Mask 8, selectable color or mosaic
UTC Function Supported
Language English
Functions Digital wide dynamic range, 3D digital noise reduction, sharpness, brightness,
digital zoom, mirror
General
Working Temperature/
Humidity
-30° C to 60° C (-22° F to 140° F)
Humidity 90% or less (non-condensing)
Power Supply 12 VDC
Power Consumption Maximum 6 W
Weatherproof Rating IP66
IR RangeUp to 50 meters IR range
Communication Up-the-Coax
Dimensions φ130.54 mm x 93.24 mm (φ5.14" x 3. 67")
Weight380 g (0.84 lb)
Key Features

Dimensions
Accessories

Wall Mount:
WML + PC130T
Angled Base Mount
ABM
Video Balun
DS-1H18

Conduit Base CBM
Order Models
DS-2CE56C5T-VFIT3
Hikvision USA Inc., 908 Canada Court, City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2015 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 091615US
