DS-2CE56D0T-IRM(3.6mm)

DS-2CE56D0T-IRM  HD1080P IR Turret Camera     2 Megapixel high-performance CMOS   Analog HD output, up to 1080P resolution   True Day/Night, Smart IR   Up to 20m IR distance   IP66 weatherproof    Key Features                  Specifications    Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1920(H)*1080(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm optional  Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  General  Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)  Power Supply 12 VDC±15%  Power Consumption Max. 4W  Protection Level IP66  IR Range Up to 20m  Dimension 89.6 x 59.1 mm (3.53” x 2.33”)  Weight 340 g  Order Models  DS-2CE56D0T-IRM ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE56D0T-IRM

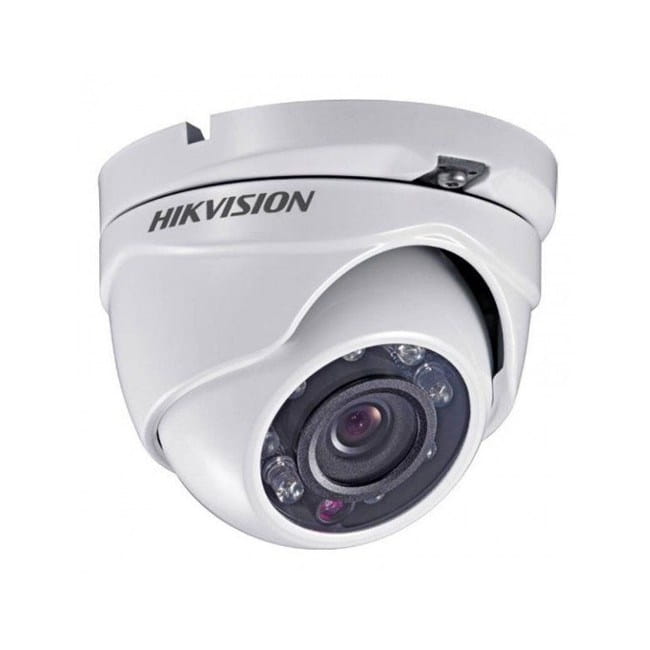

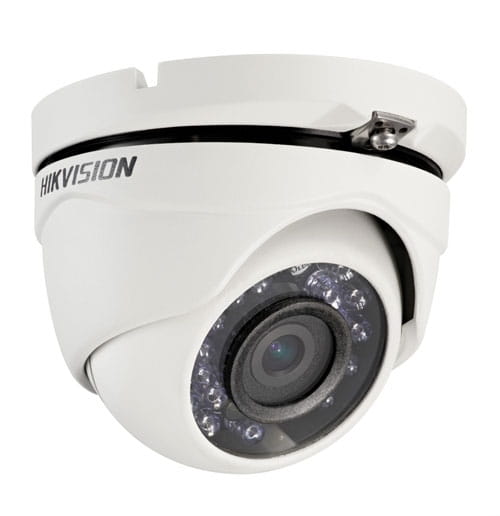

HD1080P IR Turret Camera

2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night, Smart IR
Up to 20m IR distance
IP66 weatherproof

Key Features








Specifications

Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 20m
Dimension 89.6 x 59.1 mm (3.53” x 2.33”)
Weight 340 g
Order Models
DS-2CE56D0T-IRM






Dimensions
20150918
Accessories
Unit: mm

DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Vertical Pole Mounting Corner Mounting Video Balun


X41T DS-1280ZJ-XS
Camera Tester Junction box
