DS-2CE56D0T-IT3(8mm)

Key Features   2.0 megapixel high-performance CMOS   HD analog output, up to 1080p resolution   2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm, 16 mmfixed focal lens   True Day/Night   EXIR 2.0, up to 40 m IR distance   IP66   PoC.af   Up the Coax (HIKVISION-C)    DS-2CE56D0T-IT3E  HD 1080p PoCEXIR Turret Camera        Camera  Image Sensor 2.0megapixelprogressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Effective Pixels 1920(H) x 1080(V)  Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR  Shutter Time  PAL: 1/25s to 1/50,000s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm,16 mm fixed focal lens  Horizontal Field of View  103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm), 37.96° (8 mm), 24.36° (12 mm), 18.92°  (16 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment Pan:0° to360°, Tilt:0° to 75°, Rotate:0° to360°  Synchronization Internal synchronization  S/N Ratio >62dB  Interface  Video Output 1 HD analog output/1 Vp-p composite output (75Ω/BNC)  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F),humidity: 90% or less (non-condensation)  ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 2.0 megapixel high-performance CMOS
 HD analog output, up to 1080p resolution
 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm, 16 mmfixed focal lens
 True Day/Night
 EXIR 2.0, up to 40 m IR distance
 IP66
 PoC.af
 Up the Coax (HIKVISION-C)

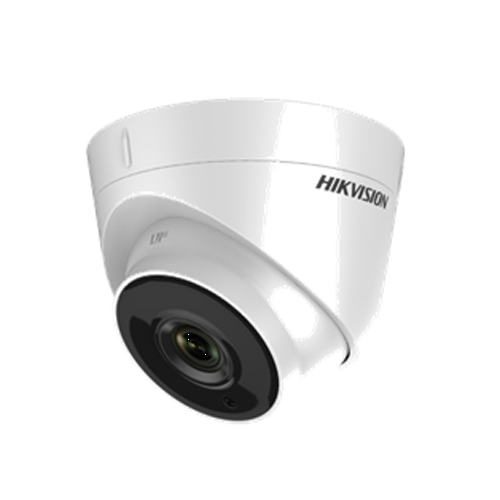

DS-2CE56D0T-IT3E
HD 1080p PoCEXIR Turret Camera



Camera
Image Sensor 2.0megapixelprogressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Effective Pixels 1920(H) x 1080(V)
Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time
PAL: 1/25s to 1/50,000s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm,16 mm fixed focal lens
Horizontal Field of View
103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm), 37.96° (8 mm), 24.36° (12 mm), 18.92°
(16 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan:0° to360°, Tilt:0° to 75°, Rotate:0° to360°
Synchronization Internal synchronization
S/N Ratio >62dB
Interface
Video Output 1 HD analog output/1 Vp-p composite output (75Ω/BNC)
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F),humidity: 90% or less (non-condensation)
Power Supply 12 VDC±30%/PoC.af
Power Consumption Max. 4W
Ingress Protection IP66
Material Plastic
IR Range Up to 40m
Communication Up the coax, Protocol: HIKVISION-C(TVI output)
Dimensions Φ110 mmx 93.2 mm (4.33" x 3.67")
Weight Approx.350 g (0.77 lb.)
Specification



Order Models
DS-2CE56D0T-IT3E

Dimension
9
3
.
2

m
m

(
3
.
6
7
"
)
3-Φ 4.2 mm (0.17")
1
2
0

°

Φ 85 mm (3.35")
Φ 110 mm (4.33")


Accessory

DS-1272ZJ-110-TRS
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting
Bracket





DS-1275ZJ
Vertical Pole Mounting Bracket





DS-1280ZJ-S
Junction Box

DS-1281ZJ-S
Inclined Ceiling Mounting Bracket

DS-1H18
Video Balun
