DS-2CE56D0T-IT3F(8mm)

DS-2CE56D0T-IT3F  HD 1080p EXIR Turret Camera    * 2 megapixel high performance CMOS  * Analog HD output, up to 1080p resolution  * True Day/Night,  * Smart IR  * Up to 40m IR distance  * Switchable TVI/AHD/CVI/CVBS  * IP66      Key Features                Specifications          Camera  Image Sensor 2 MP CMOS image sensor  Signal System PAL/NTSC  Effective Pixels 1920 (H) x 1080 (V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30) s to 1/50,000 s  Lens  3.6mm (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional)  Field of view: 103° (2.8 mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.2°(3.6mm), 18.8°(6mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62 dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)  Power Supply 12 V DC±15%  Power Consumption Max. 4 W  Protection Level IP66  IR Range Up to 40 m  Dimension Φ110 mm x 93.2 m...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE56D0T-IT3F

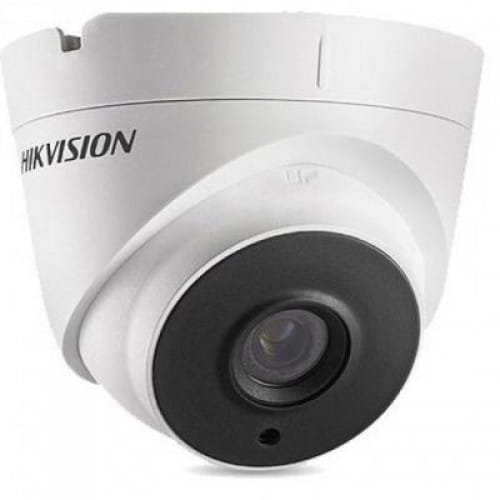

HD 1080p EXIR Turret Camera

* 2 megapixel high performance CMOS
* Analog HD output, up to 1080p resolution
* True Day/Night,
* Smart IR
* Up to 40m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66


Key Features







Specifications




Camera
Image Sensor 2 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
3.6mm (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional)
Field of view: 103° (2.8 mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.2°(3.6mm), 18.8°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 40 m
Dimension Φ110 mm x 93.2 mm (4.33" x 3.67")
Weight 350 g (0.77 lb.)
Order Model
DS-2CE56D0T-IT3F






9
3.
2

m
m

(
3
.
6
7"
)
3-Φ 4.2 mm (0.17")
1
2
0

°

Φ 85 mm (3.35")
Φ 110 mm (4.33")



Accessories

DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Bracket Vertical Pole Mounting Bracket Corner Mounting Bracket Video Balun



X41T DS-1280ZJ-S DS-1281ZJ-S
Camera Tester Junction Box Inclined Ceiling Mounting Bracket




Dimensions
