DS-2CE56D0T-VFIR3F(2.8-12mm)

DS-2CE56D0T-VFIR3F  HD 1080p IR Turret Camera    * 2 megapixel highperformance CMOS  * Analog HD output, up to 1080p resolution  * Day/Night switch  * Smart IR  * Up to 40m IR distance  * Switchable TVI/AHD/CVI/CVBS  * IP66  Key Features                    Specifications          Camera  Image Sensor 2MP CMOS image sensor  Signal System PAL/NTSC  Effective Pixels 1920(H)x1080(V)  Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8 - 12 mm @ F1.4  Angle of view: 102.25° - 32 °  Lens Mount Φ14  Day & Night ICR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to75°, Rotation: 0° to 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)  Power Supply 12 VDC±15%  Power Consumption Max. 4W  Protection Level IP66  IR Range Up to 40m  Dimensions Φ130.54 x 102.4mm (Φ5.1” x 4”)  Weight Approx. 710g    Order Model  DS-2CE56D0T-VFIR3F       <...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE56D0T-VFIR3F

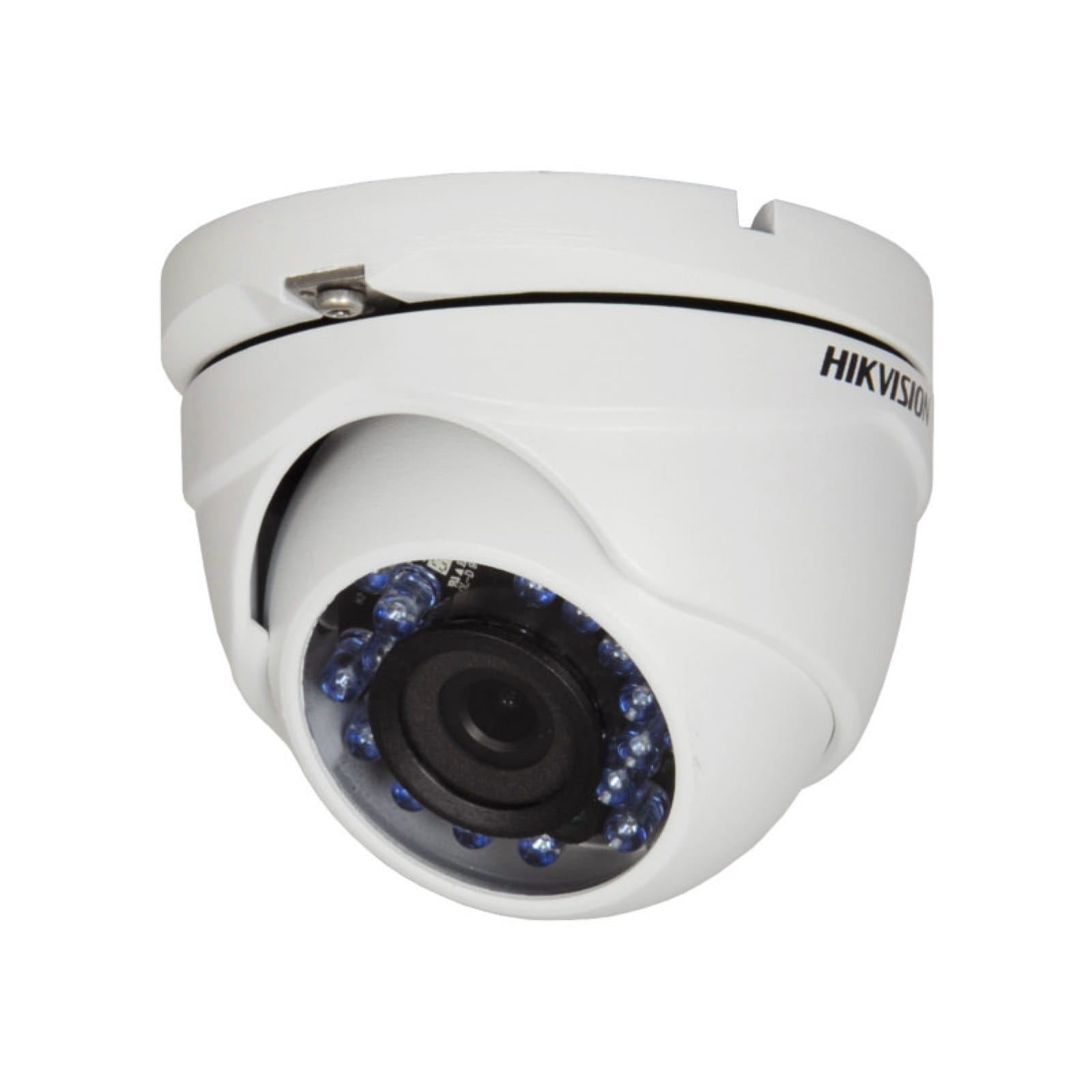

HD 1080p IR Turret Camera

* 2 megapixel highperformance CMOS
* Analog HD output, up to 1080p resolution
* Day/Night switch
* Smart IR
* Up to 40m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66
Key Features









Specifications




Camera
Image Sensor 2MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1920(H)x1080(V)
Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8 - 12 mm @ F1.4
Angle of view: 102.25° - 32 °
Lens Mount Φ14
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 40m
Dimensions Φ130.54 x 102.4mm (Φ5.1” x 4”)
Weight Approx. 710g

Order Model
DS-2CE56D0T-VFIR3F





Dimensions

20150918
Accessories
0100001061107

3-4.5(0.2")
112.4(4.4")
130.54(5.1")
102.4(4")


DS-1273ZJ-130-TRL DS-1275ZJ DS-1276ZJ DS-1280ZJ-M
Wall Mounting Vertical Pole Mounting Corner Mounting Junction Box




DS-1281ZJ-SDS-1H18 X41T
Inclined Ceiling MountingVideo Balun Camera Tester
