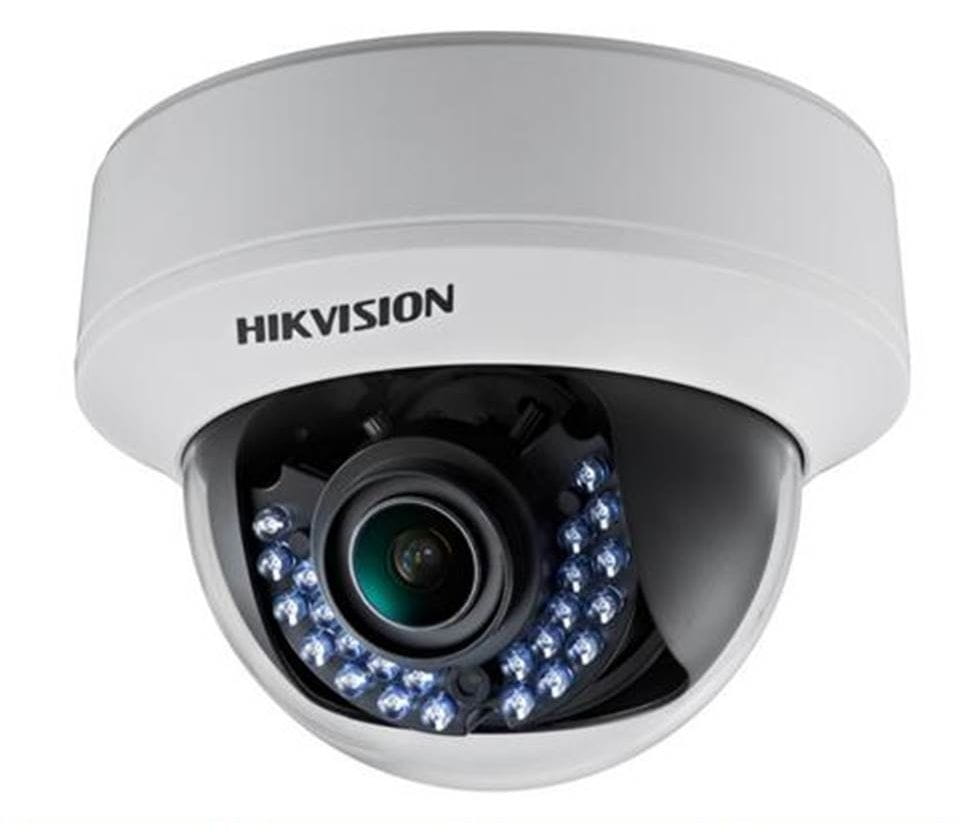

DS-2CE56D1T-AVFIR(2.8-12mm)

DS-2CE56D1T-(A)VFIR  HD1080P Indoor Vari-focal IR Dome Camera    * 2 Megapixel high-performance CMOS  * Analog HD output, up to 1080P resolution  * 2.8 – 12mm vari-focal lens  * True Day/Night, Smart IR  * Up to 30m IR distance  * OSD menu  * 24V AC/ 12V DC (-A)  * Up the Coax(HIKVISION-C protocol)    Key Features                  Specifications          Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1930(H)*1088(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8 - 12 mm @ F1.4  Angle of view: 114.5° - 35.1°  Lens Mount φ14  Day & Night ICR  Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  Menu  Camera ID On/off (0-255)  AGC Support  D/N Mode Color/BW/Auto/EXT  White Balance Auto/User/Push/8000K/6000K/4200K/3000K  Privacy Mask On/Off, maximum 2 zones  Motion Detection On/Off, maximum 4 zones  BLC Support  Anti-flicker On/Off  Languag...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE56D1T-(A)VFIR
HD1080P Indoor Vari-focal IR Dome Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* 2.8 – 12mm vari-focal lens
* True Day/Night, Smart IR
* Up to 30m IR distance
* OSD menu
* 24V AC/ 12V DC (-A)
* Up the Coax(HIKVISION-C protocol)

Key Features








Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1930(H)*1088(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8 - 12 mm @ F1.4
Angle of view: 114.5° - 35.1°
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
Camera ID On/off (0-255)
AGC Support
D/N Mode Color/BW/Auto/EXT
White Balance Auto/User/Push/8000K/6000K/4200K/3000K
Privacy Mask On/Off, maximum 2 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/Off
Language English/Chinese
Functions Digital noise reduction, Mirror
General
Operating Conditions -20 °C – 45 °C (-4 °F – 113 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%, -A: 12 VDC±15%, 24 VAC±15%
Power Consumption Max. 3W, -A: Max. 4W
IR Range Up to 30m
Communication Up the coax, Protocol: HIKVISION-C(TVI output)
Dimensions Φ 136 x 101.94 mm (Φ 5.35” x 4.01”)
Weight 600 g
Order Models
DS-2CE56D1T-VFIR, DS-2CE56D1T-AVFIR







Dimensions

20150918
Accessories

DS-1273ZJ-130 DS-1275ZJ DS-1271ZJ-130 DS-1273ZJ-130B
Wall Mounting Vertical Pole Mounting Pendant Mounting Wall Mounting



DS-1249ZJ DS-1276ZJ DS-1H18 X41T
In-ceiling Mounting Corner Mounting Video Balun Camera Tester
