www.hikvision.com

DS-2CE56D1T-(A)VPIR3

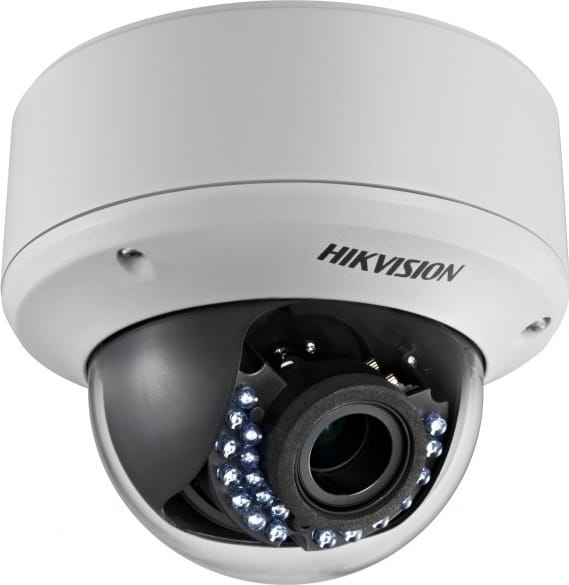

HD1080P Outdoor Vandal Proof IR Dome Camera

t HD1080P Video Output
t Adopt HDTVI Technology
t True Day/Night, Smart IR
t 2.8 - 12mm vari-focal lens
t Up to 40m IR distance
t IP66 weatherproof & Vandal Proof
t OSD menu controlled via UTC
t Dual voltage (DS-2CE56D1T-AVPIR3)
DS-2CE56D1T-AVPIR3
DS-2CE56D1T-VPIR3

DS-2CE56D1T-(A)VPIR3
Camera
Image Sensor2 MP CMOS Image Sensor
Signal SystemPAL / NTSC
Effective Pixels1930(H)*1088(V)
Min. Illumination
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter speed1/25(1/30) s to 1/50,000 s
Lens
2.8-12mm @ F1.4
Angle of view: 105.2° - 32.8°
Lens Mountφ14
Angle AdjustmentPan: 0 - 355°, Tilt: 0 - 90°, Rotation: 0-355°
Day & NightICR
SynchronizationInternal synchronization
Video Frame Rate1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S / N RatioMore than 52dB
Menu
AGCSupport
D/N ModeColor/ BW/ EXT
White BalanceAuto/ Manual
BLCSupport
LanguageEnglish/ Chinese
FunctionDigital noise reduction, Mirror
General
Working Temperature / Humidity
-40 °C 60 °C (-40 °F 140 °F)
Humidity 90% or less (non-condensing)
Power Supply
12 VDC ;
-A: 12 VDC, 24 VAC
Power ConsumptionMax. 4W
Weather Proof RatingsIP66
IR RangeUp to 40m
Impact ProtectionIEC60068-2-75 test, Eh, 20J; EN50102, up to IK10.
Communication
Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimensions 145.2 x 124.1 mm ( 5.72” x 4.9”)
Weight880g (1.95 lbs)
Key features
Dimensions
Available models

OSD

ICR

Scan

BLC

Accessories

Video balun
DS-1H18
2MP
