DS-2CE56D5T-IT3(3.6mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CE56D5T-IT3      Key Features   2 Megapixel high-performance CMOS   Analog HD output, up to 1080P resolution   True Day/Night   OSD menu, 3D DNR, Smart IR   True WDR, up to 120dB   EXIR technology, up to 40m IR distance   IP66 weatherproof   UTC function(Pelco C protocol)  Specification   Model  Parameter  DS-2CE56D5T-IT3  Turbo HD1080p EXIR Turret Camera  Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1944(H)*1092(V)  Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25(1/30) s to 1/50,000 s  Lens  3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)  Angle of View: 82.6°(3.6mm), 103.5°(2.8mm), 54.4°(6mm), 38°(8mm),  24.4°(12mm), 18.9°(16mm)  Lens Mount M12  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°  Day & Night ICR  Synchronization Internal synchronization        ©2006 – 2014 by HIKVISION. All rights ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CE56D5T-IT3


Key Features
 2 Megapixel high-performance CMOS
 Analog HD output, up to 1080P resolution
 True Day/Night
 OSD menu, 3D DNR, Smart IR
 True WDR, up to 120dB
 EXIR technology, up to 40m IR distance
 IP66 weatherproof
 UTC function(Pelco C protocol)
Specification
Model
Parameter
DS-2CE56D5T-IT3

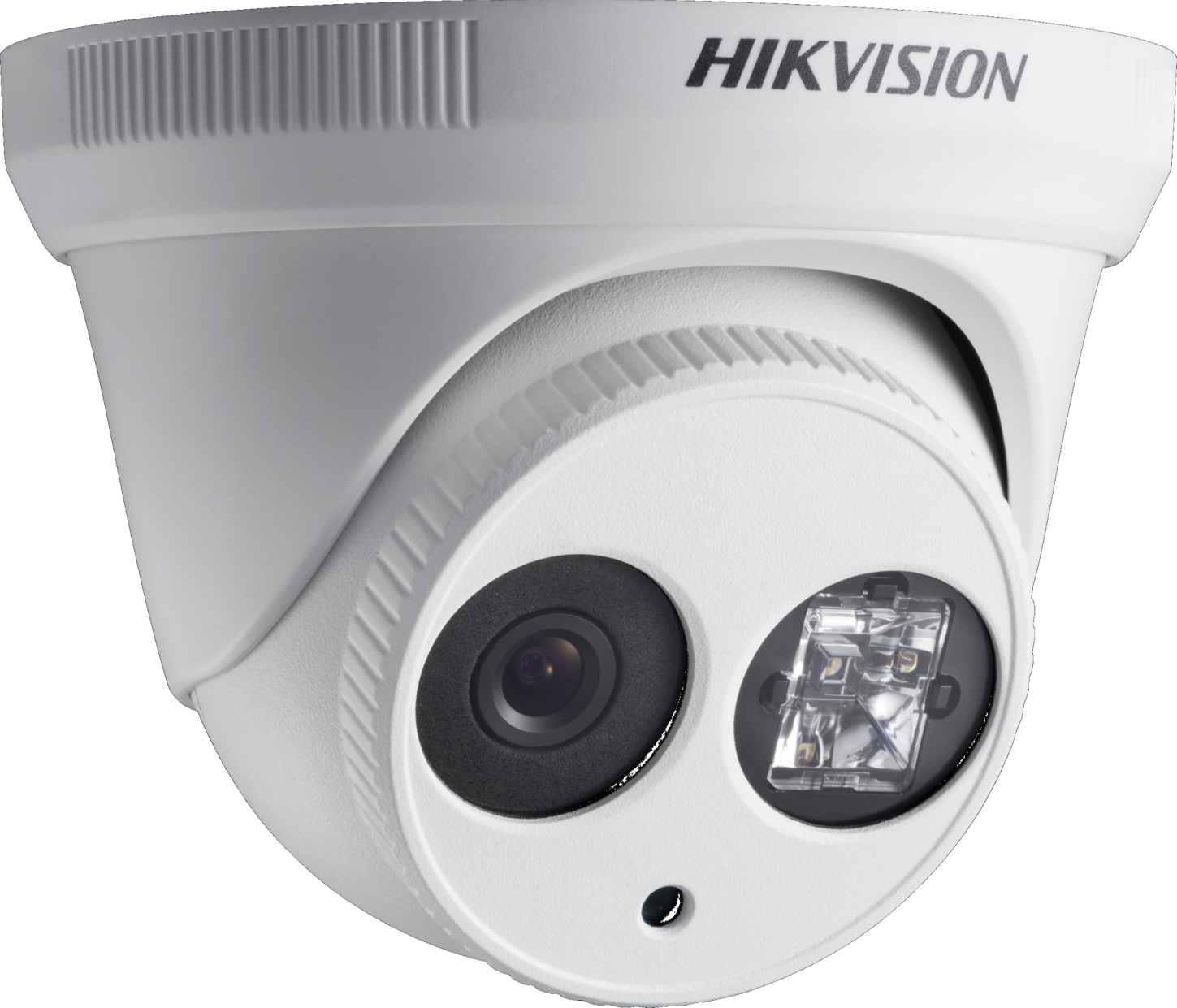

Turbo HD1080p EXIR Turret Camera
Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1944(H)*1092(V)
Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)
Angle of View: 82.6°(3.6mm), 103.5°(2.8mm), 54.4°(6mm), 38°(8mm),
24.4°(12mm), 18.9°(16mm)
Lens Mount M12
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night ICR
Synchronization Internal synchronization



©2006 – 2014 by HIKVISION. All rights reserved.
2
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
CVBS Output 1Vp-p Composite Output(75Ω/BNC)
S/N Ratio ＞62dB
Menu
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Support
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
Privacy Mask On/Off, maximum 8 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/off
Language
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish,
Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
Functions
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror,
Defog, Defect pixel correction, SMART D-ZOOM
General
Working
Temperature/Humidity
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC±15%
Power Consumption Max. 5W
Weather Proof Ratings IP66
IR Range Up to 40m
Communication
Up the coax
Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension Φ114.6 x 89.1mm(Φ4.5” x 3.5”)
Weight 420 g (0.93 lb)
Order Model
DS-2CE56D5T-IT3



©2006 – 2014 by HIKVISION. All rights reserved.
3
Dimension
Unit: mm


Accessories



DS-1272ZJ-110 DS-1275ZJ DS-1276ZJ DS-1280ZJ-S
Wall Mounting Vertical Pole Mounting Corner Mounting Junction Box




DS-1258ZJ DS-1281ZJ-S DS-1H18 DS-TT-X41T
Wall Mounting Inclined Ceiling Mounting Video Balun TVI Tester
