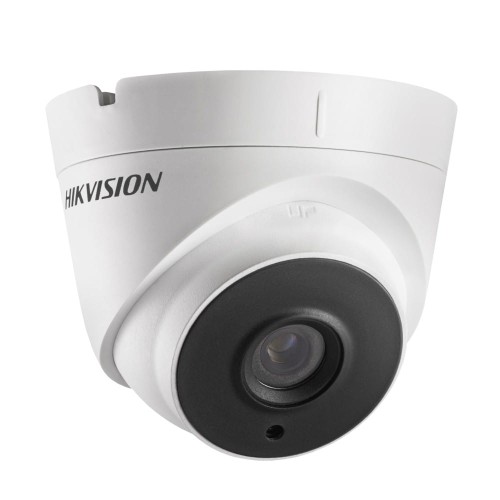

DS-2CE56D7T-IT3(12mm)

DS-2CE56D7T-IT3  HD1080P WDR EXIR Turret Camera    * 2 Megapixel high-performance CMOS  * Analog HD output, up to 1080P resolution  * True Day/Night  * OSD menu, DNR, Smart IR  * True WDR, up to 120dB  * EXIR technology, up to 40m IR distance  * IP66 weatherproof  * Up the Coax(HIKVISION-C)  Key Features                      Specifications          Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1928(H)*1088(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional  Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.3°(12mm), 18.8°(16mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° - 360°; Tilt: 0° - 75°; Rotate: 0° - 360°  Synchronization Internal Synchronization  WDR 120dB  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  Menu  AGC Support  D/N Mode Color/BW/SMART  White Balance ATW/ MWB  BLC Support  Functions Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR  ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2CE56D7T-IT3
HD1080P WDR EXIR Turret Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* True Day/Night
* OSD menu, DNR, Smart IR
* True WDR, up to 120dB
* EXIR technology, up to 40m IR distance
* IP66 weatherproof
* Up the Coax(HIKVISION-C)
Key Features










Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1928(H)*1088(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.3°(12mm), 18.8°(16mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° - 360°; Tilt: 0° - 75°; Rotate: 0° - 360°
Synchronization Internal Synchronization
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
AGC Support
D/N Mode Color/BW/SMART
White Balance ATW/ MWB
BLC Support
Functions Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 5W
Protection Level IP66
IR Range Up to 40m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions φ110mmx93.2mm (φ4.33”x3.67”)
Weight Approx. 350g (0.77lb)




Dimensions


DS-1272ZJ-110-TRL DS-1275ZJ DS-1276ZJ DS-1280ZJ-S
Wall Mounting Vertical Pole Mounting Corner Mounting Junction Box



Order Models

DS-1281ZJ-S DS-1H18 X41T
Inclined Ceiling Mounting Video Balun Camera Tester




20160510
Accessories
DS-2CE56D7T-IT3
3-Φ4.2(0.17")
120°
93.2(3.67")
Unit: mm
Φ85(3.35")
Φ110(4.33")
