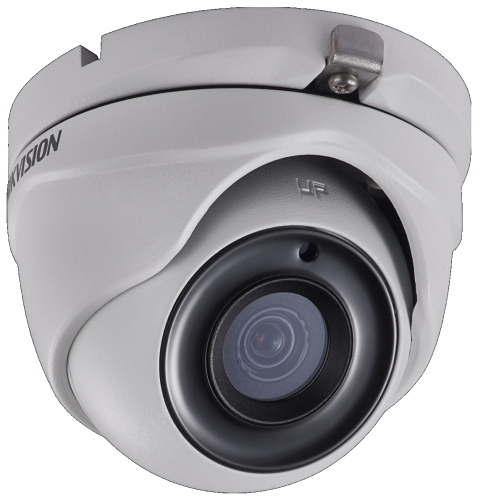

DS-2CE56D7T-ITM(6mm)

            DS-2CE56D7T-ITM  HD1080p WDR EXIR Outdoor Turret Camera        * 1/2.7" (2 MP) High-Performance CMOS  * Analog HD Output, Up to 1080p Resolution  * True Day/Night  * OSD Menu, DNR, Smart IR  * True WDR, Up to 120 dB  * EXIR Technology, Up to 66 ft (20 m) IR Distance  * IP66 Weatherproof  * Up-the-Coax (HIKVISION-C)    The Hikvision DS-2CE56D7T-ITM turret camera  provides high definition analog output up to  1080p. TurboHD means that the analog signal  can be sent over existing RG6 coaxial cable,  eliminating the need to run new cables for high  definition video.  EXIR is Hikvision’s proprietary IR extended range  technology, which has a range of 66 feet (20  meters). Smart IR varies IR output based on the  zoom setting.  The 2.8 mm, 3.6 mm, and 6 mm lens options  allow the correct angle of view to fit any situation.  True 120 dB WDR (Wide Dynamic Range)  ensures images will be optimal, no matter what  the lighting conditions.  This camera also features a range of Smart  functions, including line crossing, intrusion, and  region entrance and exit, benefitting users with  great improvements on security efficiency and,  ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:







DS-2CE56D7T-ITM
HD1080p WDR EXIR Outdoor Turret Camera



* 1/2.7" (2 MP) High-Performance CMOS
* Analog HD Output, Up to 1080p Resolution
* True Day/Night
* OSD Menu, DNR, Smart IR
* True WDR, Up to 120 dB
* EXIR Technology, Up to 66 ft (20 m) IR Distance
* IP66 Weatherproof
* Up-the-Coax (HIKVISION-C)

The Hikvision DS-2CE56D7T-ITM turret camera
provides high definition analog output up to
1080p. TurboHD means that the analog signal
can be sent over existing RG6 coaxial cable,
eliminating the need to run new cables for high
definition video.
EXIR is Hikvision’s proprietary IR extended range
technology, which has a range of 66 feet (20
meters). Smart IR varies IR output based on the
zoom setting.
The 2.8 mm, 3.6 mm, and 6 mm lens options
allow the correct angle of view to fit any situation.
True 120 dB WDR (Wide Dynamic Range)
ensures images will be optimal, no matter what
the lighting conditions.
This camera also features a range of Smart
functions, including line crossing, intrusion, and
region entrance and exit, benefitting users with
great improvements on security efficiency and,
more importantly, with key events and objects
being recorded for further forensic needs.
It is an outdoor IP66 camera that supports a wide
temperature range.
Available Models: DS-2CE56D7T-ITM




















Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2017 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 030717NA 


Specifications

DS-2CE56D7T-ITM

Camera
Image Sensor 1/2.7" (2 MP) CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1928 x 1088
Minimum Illumination 0.01 lux @ ƒ/1.2, AGC on, 0 lux with IR
Shutter Speed 1/25 (1/30)s to 1/50,000s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Angle of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
Lens Mount M12
Day/Night ICR
3-Axis Positioning Pan: 0° to 360°; tilt: 0° to 75°; rotate: 0° to 360° (PAL/NTSC)
Synchronization Internal synchronization
WDR 120 dB
Video Frame Rate 1080p @ 25 fps/1080p @ 30 fps
HD Video Output 1 analog HD-TVI output
S/N Ratio ＞62 dB
Menu
AGC Supported
D/N Mode Color/BW/Smart
White Balance ATW/MWB
BLC Supported
Functions Wide Dynamic Range, digital noise reduction, mirror, Smart IR
General
Operating Conditions -40° F to 140° F (-40° C to 60° C), humidity 90% or less (non-condensing)
Power Supply 12 VDC ±15%
Power Consumption Maximum 5 W
Protection Level IP66
IR Range Up to 66 ft (20 m)
Communication Up-the-Coax, protocol: HIKVISION-C (TVI output)
Dimensions 3.58" x 3.25" x 2.69" (91 mm x 82.6 mm x 68.3 mm)
Weight (approximate) 0.77 lb (350 g)

Dimensions

Accessories







WMS
Short Wall Mount
w/Junction Box
PM
Vertical Pole Mount
CM
Corner Mount
CBS
Conduit Base
ABS
Angled Base
DS-1H18
Video Balun
X41T
Camera Tester
