DS-2CE56D7T-VPIT

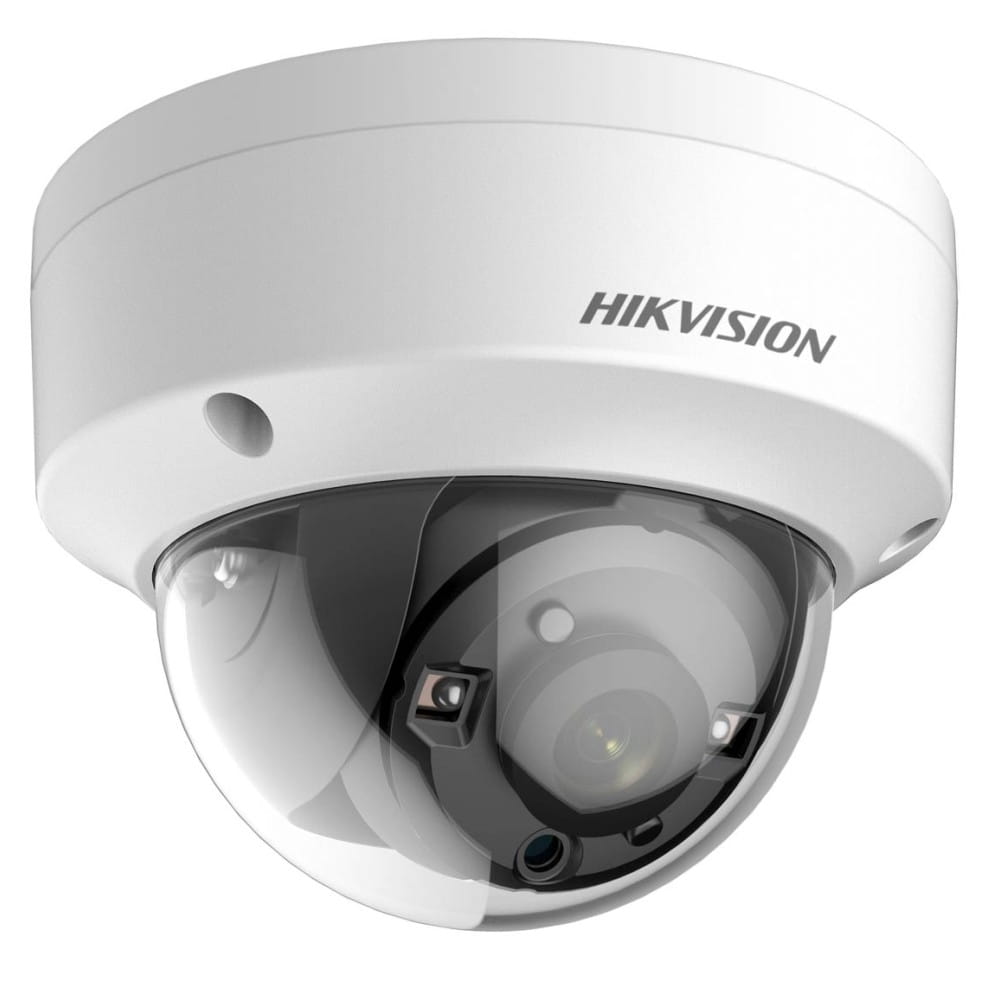

HD1080P WDR Vandal Proof EXIR Dome Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* True Day/Night
* OSD menu, DNR, Smart IR
* True WDR, up to 120dB
* EXIR technology, up to 20m IR distance
* IP66 weatherproof & vandal proof
* Up the Coax(HIKVISION-C)




Key Features







Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1928(H)*1088(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° - 340°; Tilt:0° - 75°; Rotate: 0° - 355°
Synchronization Internal Synchronization
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
AGC Support
D/N Mode Color/BW/SMART
White Balance ATW/ MWB
BLC Support
Functions Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 5W
Protection Level IP66
IR Range Up to 20m
Impact Protection IK10
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions φ111mmx82.5mm (φ0.43”x3.25”)
Weight Approx. 350g ( 0.77lb)




Dimensions


DS-1259ZJ DS-1271ZJ-110 DS-1272ZJ-110 X41T
Inclined Ceiling Mounting Pendant Mounting Wall Mounting Camera Tester


Order Models

DS-1280ZJ-DM18 DS-1258ZJ DS-1H18
Junction Box Wall Mounting Video Balun



Accessories
20160119
DS-2CE56D7T-VPIT
Unit: mm
17
.
2
(
0
.
68
")
47.2(1.86")8.7(0.34")
32
.
5
(
1
.
28
")
38.6(1.52")
3-Φ5.0(0.2")
Φ111(4.4'')
82
.
4
(
3
.
2
''
)
Φ79.1(3.1'')
