DS-2CE56D8T-IT3(12mm)

Key Features   2.0 megapixel high-performance CMOS   HD analog output, up to 1080p resolution   2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens   True Day/Night   120 dB true WDR   OSD menu, DNR, Smart IR   EXIR 2.0, up to 40 m IR distance   IP67   Up the Coax (HIKVISION-C)    DS-2CE56D8T-IT3  2 MP Ultra Low-Light EXIR Turret Camera          Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max.: 16 times  Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens  Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm), 38° (8 mm), 24.4° (12 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) > 120 dB  Menu  AGC Support  Day/Night Mode Auto/Color/BW (Black and White)  White Balance ATW/MANUAL  Privacy Mask ON...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 2.0 megapixel high-performance CMOS
 HD analog output, up to 1080p resolution
 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
 True Day/Night
 120 dB true WDR
 OSD menu, DNR, Smart IR
 EXIR 2.0, up to 40 m IR distance
 IP67
 Up the Coax (HIKVISION-C)

DS-2CE56D8T-IT3

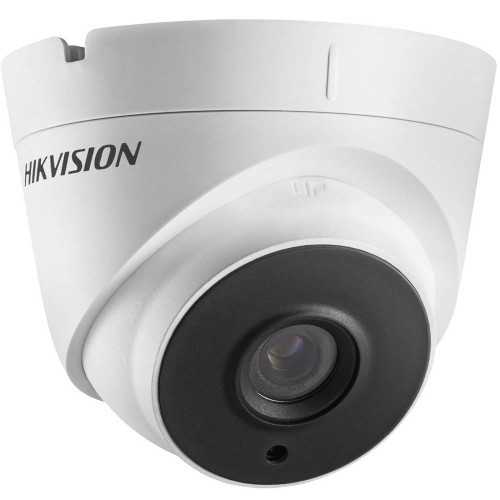

2 MP Ultra Low-Light EXIR Turret Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max.: 16 times
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm), 38° (8 mm), 24.4° (12 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) On
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC±25%
Power Consumption Max. 4W
Ingress Protection IP67
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Φ 110 mm x 93.2 mm (Φ 4.33" x 3.67")
Weight 350 g (0.77 lb.)
Specification



Order Models
DS-2CE56D8T-IT3
Dimension
3-Φ 4.2 mm (0.17")
120°
9
3
.
2

m
m

(
3
.
6
7
"
)
Φ 85 mm (3.35")
Φ 110 mm
(4.33")


Accessory

DS-1272ZJ-110-TRS
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1276ZJ
Corner Mounting Bracket

DS-1280ZJ-M
Junction Box

DS-1281ZJ-S
Inclined Ceiling Mounting Bracket


DS-1H18
Video Balun





010000170504
