DS-2CE56D8T-ITMF(6mm)

Key Features   2 MP high performance CMOS   Ultra-low light   1920 x 1080 resolution   2.8 mm, 3.6 mm, 6 mm fixed focal lens   130 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 30 m IR distance   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE56D8T-ITMF  2 MP Ultra-Low Light EXIR Turret Camera        Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Resolution 1920 (H) x 1080 (V)  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm, fixed lens  Horizontal Field of View 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)  Lens Mount M12  Day & Night IR cut filter  WDR (Wide Dynamic Range) ≥ 130 dB  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Menu  Image Mode STD/HIGH-SAT  AGC Support  Day/Night Mode Auto/Color/BW (Black White)  White Balance Auto/Manual  AE (Auto Exposure) Mode WDR/BLC/HLC/Global  Privacy Mask 4 programmable privacy masks  Motion Detection...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 2 MP high performance CMOS
 Ultra-low light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 130 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

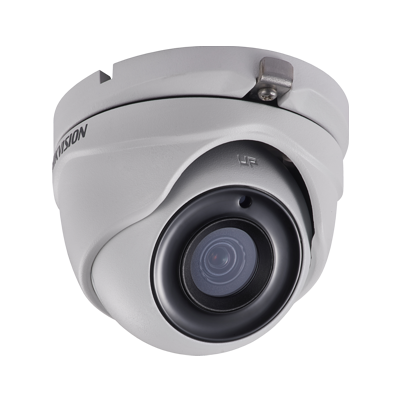

DS-2CE56D8T-ITMF
2 MP Ultra-Low Light EXIR Turret Camera



Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm, fixed lens
Horizontal Field of View 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
Lens Mount M12
Day & Night IR cut filter
WDR (Wide Dynamic Range) ≥ 130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Support
Day/Night Mode Auto/Color/BW (Black White)
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
NR (Noise Reduction) 3D/2D
Language English
Functions Brightness, Sharpness, Mirror, Smart IR, HLC
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 3.4 W
Ingress Protection IP67
Material Metal
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 89.47 mm x 68.2 mm (3.52" x 2.68")
Weight Approx. 238 g (0.52 lb.)
Specification


Order Models
DS-2CE56D8T-ITMF
Dimension
89
.47
mm
(3
.52
")
68
.2
mm
(2
.68
")




Accessory


DS-1272ZJ-110-TRS
Wall Mount

DS-1275ZJ-SUS
Vertical Pole Mount

DS-1276ZJ-SUS
Corner Mount

DS-1280ZJ-S
Junction Box
