Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 2 MP high performance COMS
 Ultra-Low Light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 120 dB true WDR, 3D DNR
 EXIR 2.0, Smart IR, up to 20 m IR distance
 IP67, IK7
 Up the Coax (HIKVISION-C)

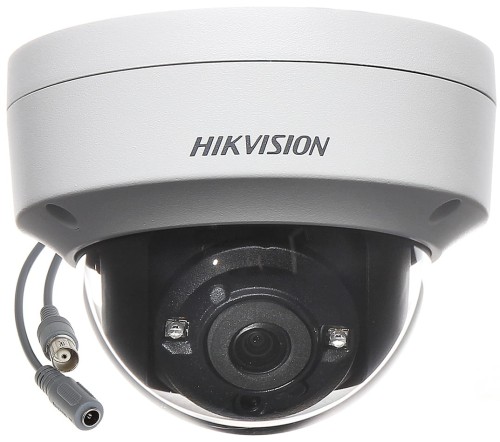

DS-2CE56D8T-VPIT
2 MP Ultra-Low Light Dome Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max.: 16 times
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 3.2 W
Protection Level IP67, IK7
Material Metal
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Φ 111 mm x 82.4 mm (Φ 4.4" x 3.2")
Weight Approx. 350 g (0.77 lb.)
Specification



Order Models
DS-2CE56D8T-VPIT
Dimension
Φ
1
0
0
.
4

m
m

(
4
'
'
)
1
7
.
2

m
m

(
0
.
6
8
"
)
47.2 mm (1.86")
8.7 mm (0.34")
3
2
.
5

m
m

(
1
.
2
8
"
)
38.6 mm (1.52")
Φ 111 mm (4.4'')
8
2
.
4

m
m

(
3
.
2
'
'
)
Φ 79.1 mm (3.1'')
3-5.0 mm (0.2")


Accessory

DS-1259ZJ
Inclined Ceiling Mounting Bracket

DS-1271ZJ-110
Pendant Mounting Bracket

DS-1272ZJ-110B
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1280ZJ-DM18
Junction Box


DS-1258ZJ
Wall Mounting Bracket

DS-1H18
Video Balun




010000170623
