DS-2CE56F7T-AITZ(2.8-12mm)

DS-2CE56F7T-(A)ITZ  3MP Motorized VF EXIR Dome Camera    * 3 Megapixel high-performance CMOS  * Analog HD output, up to 3MP resolution  * 2.8-12mm motorized vari-focal lens  * True Day/Night  * OSD menu, DNR, Smart IR  * True WDR, up to 120dB  * EXIR technology, up to 30m IR distance  * Up the Coax(HIKVISION-C)  Key Features                      Specifications          Camera  Image Sensor 3MP CMOS Image Sensor  Effective Pixels 2052(H)*1536(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  Motorized VF lens; 2.8 - 12 mm  Angle of view: 26.8°-83°  Lens Mount φ14  Day & Night ICR  Angle Adjustment Pan: 0° - 355°; Tilt:0° - 75°; Rotate: 0° - 355°  Synchronization Internal Synchronization  WDR 120dB  Video Frame Rate 1920x1536@18fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  Menu  AGC Support  D/N Mode Color/BW/SMART  White Balance ATW/ MWB  BLC Support  Functions Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR  General  Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

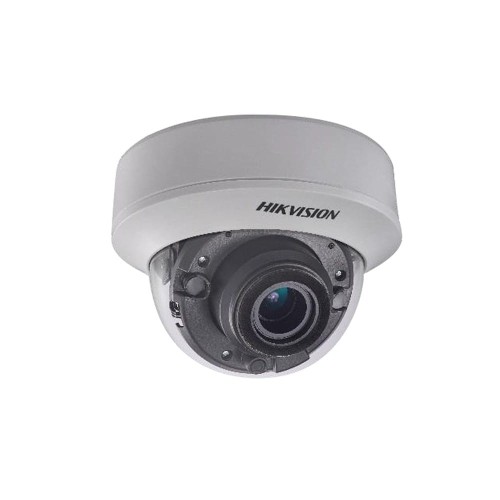

DS-2CE56F7T-(A)ITZ
3MP Motorized VF EXIR Dome Camera

* 3 Megapixel high-performance CMOS
* Analog HD output, up to 3MP resolution
* 2.8-12mm motorized vari-focal lens
* True Day/Night
* OSD menu, DNR, Smart IR
* True WDR, up to 120dB
* EXIR technology, up to 30m IR distance
* Up the Coax(HIKVISION-C)
Key Features










Specifications




Camera
Image Sensor 3MP CMOS Image Sensor
Effective Pixels 2052(H)*1536(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
Motorized VF lens; 2.8 - 12 mm
Angle of view: 26.8°-83°
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0° - 355°; Tilt:0° - 75°; Rotate: 0° - 355°
Synchronization Internal Synchronization
WDR 120dB
Video Frame Rate 1920x1536@18fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
AGC Support
D/N Mode Color/BW/SMART
White Balance ATW/ MWB
BLC Support
Functions Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%; -A: 12 VDC±15% 24 VAC±15%
Power Consumption Max. 4.5W; -A: Max. 6.5W
IR Range Up to 30m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Φ136mmx102mm (Φ5.35”x4.02”)
Weight Approx. 600g ( 1.32lb)




Dimensions


DS-1H18
Video Balun



DS-1275ZJ
Vertical Pole Mount


DS-1276ZJ DS-1271ZJ-130 DS-1273ZJ-130B DS-1249ZJ
Horizontal Pole Mount Pendant Mounting Wall Mounting In-ceiling Mounting

DS-2CE56F7T-ITZ, DS-2CE56F7T-AITZ
Order Models
20160118

DS-1273ZJ-130
Wall Mounting



X41T
Camera Tester

Accessories
83
.
5
(
3
.
29
")
46(1.81")
99.9(3.93")
101
.
9
(
4
.
01
")
136(5.35")
Unit: mm
