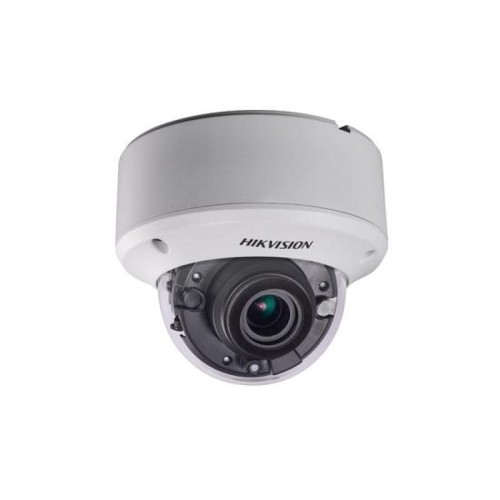

DS-2CE56F7T-VPIT3Z(2.8-12mm)

* 3 Megapixel high-performance CMOS  * Analog HD output, up to 3MP resolution  * 2.8-12mm motorized vari-focal lens  * True Day/Night  * OSD menu, DNR, Smart IR  * True WDR, up to 120dB  * EXIR technology, up to 40m IR distance  * IP66 weatherproof & vandal proof  * Up the Coax(HIKVISION-C)  DS-2CE56F7T-(A)VPIT3Z  3MP Motorized VF Proof EXIR Dome Camera    Key Features                      Specifications          Camera  Image Sensor 3MP CMOS Image Sensor  Effective Pixels 2052(H)*1536(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25s to 1/50,000s  Lens Motorized VF lens; 2.8 - 12 mm @ F1.2  Lens Mount φ14  Day & Night ICR  Angle Adjustment Pan: 0° - 340°; Tilt:0° - 75°; Rotate: 0° - 355°  Synchronization Internal Synchronization  WDR 120dB  Video Frame Rate 1920x1536@18fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  Menu  AGC Support  D/N Mode Color/BW/SMART  White Balance ATW/ MWB  BLC Support  Functions  Wide Dynamic Range, Digital noise reduction, Digital zoom(62x), Mirror, Defect pixel correction, SMART  IR  General  Operating Co...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

* 3 Megapixel high-performance CMOS
* Analog HD output, up to 3MP resolution
* 2.8-12mm motorized vari-focal lens
* True Day/Night
* OSD menu, DNR, Smart IR
* True WDR, up to 120dB
* EXIR technology, up to 40m IR distance
* IP66 weatherproof & vandal proof
* Up the Coax(HIKVISION-C)
DS-2CE56F7T-(A)VPIT3Z
3MP Motorized VF Proof EXIR Dome Camera

Key Features










Specifications




Camera
Image Sensor 3MP CMOS Image Sensor
Effective Pixels 2052(H)*1536(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25s to 1/50,000s
Lens Motorized VF lens; 2.8 - 12 mm @ F1.2
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0° - 340°; Tilt:0° - 75°; Rotate: 0° - 355°
Synchronization Internal Synchronization
WDR 120dB
Video Frame Rate 1920x1536@18fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
AGC Support
D/N Mode Color/BW/SMART
White Balance ATW/ MWB
BLC Support
Functions
Wide Dynamic Range, Digital noise reduction, Digital zoom(62x), Mirror, Defect pixel correction, SMART
IR
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%; -A: 12 VDC/24 VAC±15%
Power Consumption Max. 4.5W; -A: Max. 6.5W
Protection Level IP66
IR Range Up to 40m
Impact Protection IK10
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions φ145.2mmx124.1mm (φ5.72”x4.89”)
Weight Approx. 1600g ( 3.53lb)




Dimensions


DS-1273ZJ-140 DS-1275ZJ DS-1276ZJ DS-1271ZJ-140
Wall Mounting Vertical Pole Mounting Corner Mounting Pendant Mounting


Order Models

DS-1273ZJ-140B DS-1241ZJ DS-1240ZJ
Wall Mounting In-ceiling Mounting Inclined Ceiling Mounting

20160127
Accessories
46
(
1
.
8
''
)
83.5(3.3'')
46(1.8'')
83
.
5
(
3
.
3
''
)
124
.
1
(
4
.
9
)
Unit: mm

DS-2CE56F7T-VPIT3Z, DS-2CE56F7T-AVPIT3Z
