DS-2CE56H0T-ITME(6mm)

Key Features   5 MP high performance COMS   2560 x 1944 resolution   2.8 mm, 3.6 mm, 6 mm fixed lens   EXIR 2.0, smart IR, up to 20 m IR distance   OSD menu, 2D DNR, DWDR   PoC.af   IP67   Up the coax (HIKVISION-C)    DS-2CE56H0T-ITME  5 MP Turret Camera              Camera  Image Sensor 5 MP CMOS image sensor  Effective Pixels 2560 (H) x 1944 (V)  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed Lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°  Synchronization Internal synchronization  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Language English  Functions Brightness, Sharpness, DNR, Mirror, Smart IR  Interface  Video Output 1 HD analog output  General...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 20 m IR distance
 OSD menu, 2D DNR, DWDR
 PoC.af
 IP67
 Up the coax (HIKVISION-C)

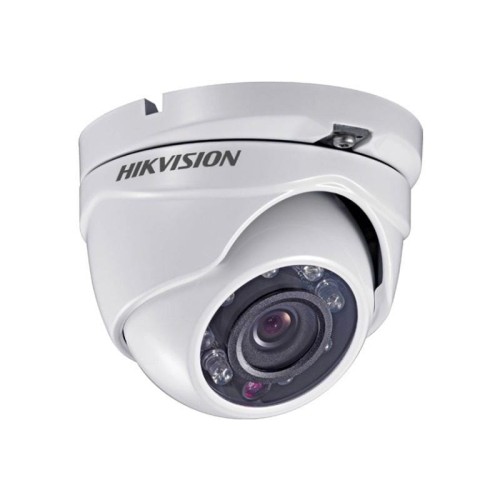

DS-2CE56H0T-ITME
5 MP Turret Camera






Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2560 (H) x 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed Lens
Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%, PoC.af
Power Consumption Max. 4.3 W
Protection Level IP67
Material Metal
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 91 mm x 82.6 mm x 68.3 mm (3.58" x 3.25" x 2.69")
Weight Approx. 253 g (0.56 lb.)
Specification


Order Model
DS-2CE56H0T-ITME
Dimension





120 °
82.6 mm
(3.25")
6
8
.
3

m
m

(
2
.
6
9
"
)
3- Ø 4.5 mm
Ø 60 mm
(2.36")
9
1

m
m

(
3
.
5
8
"
)



Accessory














DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-XS
Junction Box
