DS-2CE56H0T-VPIT3ZF(2.7-13.5mm)

Key Features   5 MP high performance COMS   2560 x 1944 resolution   2.7 mm to 13.5 mm motorized vari-focal lens   EXIR 2.0, smart IR, up to 40 m IR distance   OSD menu, 2D DNR, DWDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67, IK10   Up the coax (HIKVISION-C)    DS-2CE56H0T-(A)VPIT3ZF  5 MP Dome Camera              Camera  Image Sensor 5 MP CMOS image sensor  Resolution 2560 (H) x 1944 (V)  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.7 mm to 13.5 mm motorized vari-focal lens  Horizontal Field of View 95.7° to 29.1°  Lens Mount Φ 14              Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Functions Brightness, Sharpness, DNR, Mirror, Smart IR  Interface  Video Output 1 HD analog output  Switch Button TVI/AHD/CVI/CVBS  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)  Power Supply 12 VDC ±15%, 24 VAC ±15%  Power Consumption  ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.7 mm to 13.5 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 40 m IR distance
 OSD menu, 2D DNR, DWDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67, IK10
 Up the coax (HIKVISION-C)

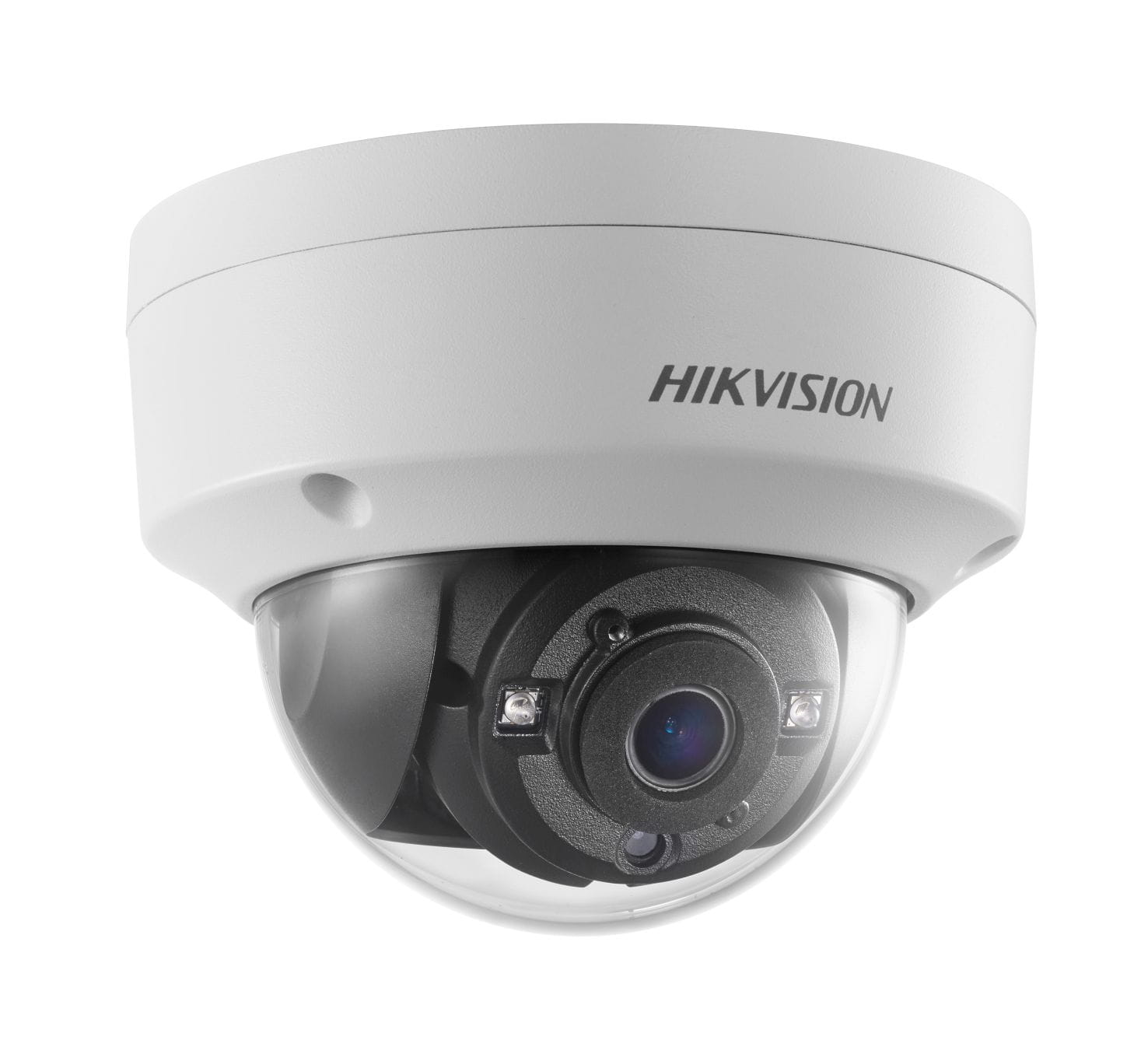

DS-2CE56H0T-(A)VPIT3ZF
5 MP Dome Camera






Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 95.7° to 29.1°
Lens Mount Φ 14






Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±15%, 24 VAC ±15%
Power Consumption
DS-2CE56H0T-VPIT3ZF: Max. 4.4 W
DS-2CE56H0T-AVPIT3ZF: Max. 6.0 W
Protection Level IP67, IK10
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 145.2 mm x 124.1 mm ( Ø 7.1" x 4.9")
Weight
DS-2CE56H0T-VPIT3ZF: Approx. 610 g (1.34 lb.)
DS-2CE56H0T-AVPIT3ZF: Approx. 655 g (1.44 lb.)


Order Model
DS-2CE56H0T-VPIT3ZF, DS-2CE56H0T-AVPIT3ZF
Dimension
4
6

m
m

(
1
.
8
'
'
)
83.5 mm (3.3'')
46 mm (1.8'')
8
3
.
5

m
m

(
3
.
3
'
'
)
Φ

1
4
5
.
2

m
m

(
7
.
1
'
'
)
1
2
4
.
1

m
m

(
4
.
9
'
'
)






Accessory









DS-1273ZJ-140
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1253ZJ-L
Rain Shade











DS-1273ZJ-140B
Wall Mount
DS-1241ZJ
In-ceiling Mount
DS-1240ZJ
Inclined Ceiling Mount
