DS-2CE56H5T-ITZE(2.8-12mm)

Key Features   5 MP high performance COMS   Ultra-low light   2560 x 1944 resolution   2.8 mm to 12 mm motorized vari-focal lens   EXIR 2.0, smart IR , up to 30 m IR distance   OSD menu, DNR, DWDR   IP65   PoC.at   Up the coax (HIKVISION-C)    DS-2CE56H5T-ITZE  5 MP Ultra-Low Light VF PoC Dome Camera        Camera  Image Sensor 5 MP CMOS image sensor  Effective Pixels 2560 (H) x 1944 (V)  Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm to 12 mm motorized vari-focal lens  Horizontal Field of View 102° to 31°  Lens Mount Φ14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355°  Synchronization Internal synchronization  Frame Rate  2560 x 1944@20fps, 2560 x 1944@12.5fps  2560x 1440@30fps, 2560x 1440@25fps (default)  1920x1080@30fps, 1920x1080@25fps  * Under the PoC mode, 2560 x 1944@12.5fps is not available.  Menu  AGC Support  D/N Mode Auto/Color/BW (Black and White)  White Balance ATW/MWB  BLC Support  DWDR (Digital Wide Dynamic Range) Support  Language English, Chinese ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CE56H8T-AITZF(2.7-13.5mm)(O-STD)

Ersatzproduktcode: 300611895

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 5 MP high performance COMS
 Ultra-low light
 2560 x 1944 resolution
 2.8 mm to 12 mm motorized vari-focal lens
 EXIR 2.0, smart IR , up to 30 m IR distance
 OSD menu, DNR, DWDR
 IP65
 PoC.at
 Up the coax (HIKVISION-C)

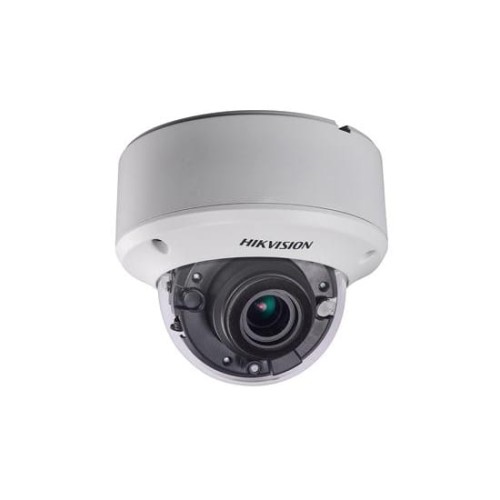

DS-2CE56H5T-ITZE
5 MP Ultra-Low Light VF PoC Dome Camera



Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2560 (H) x 1944 (V)
Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm to 12 mm motorized vari-focal lens
Horizontal Field of View 102° to 31°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355°
Synchronization Internal synchronization
Frame Rate
2560 x 1944@20fps, 2560 x 1944@12.5fps
2560x 1440@30fps, 2560x 1440@25fps (default)
1920x1080@30fps, 1920x1080@25fps
* Under the PoC mode, 2560 x 1944@12.5fps is not available.
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English, Chinese
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 V DC ±25%/PoC.at
Power Consumption Max. 8 W
Protection Level IP65
Material Plastic
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Φ 136 mm x 101.9 mm (Φ 5.35" x 4.01")
Weight Approx. 600 g (1.32 lb.)
Specification



Order Models
DS-2CE56H5T-ITZE
Dimension








Accessory

DS-1275ZJ
Vertical Pole Mounting
Bracket

DS-1273ZJ-130B
Wall Mounting Bracket






DS-1271ZJ-130
Pendant Mounting Bracket






DS-1276ZJ
Corner Mounting Bracket

DS-1249ZJ
In-ceiling Mounting Bracket

DS-1H18
Video Balun








0100001070824
8
3
.
5

m
m

(
3
.
2
9
"
)
46 mm (1.81")
99.9 mm (3.93")
1
0
1
.
9

m
m

(
4
.
0
1
"
)
136 mm (5.35")
