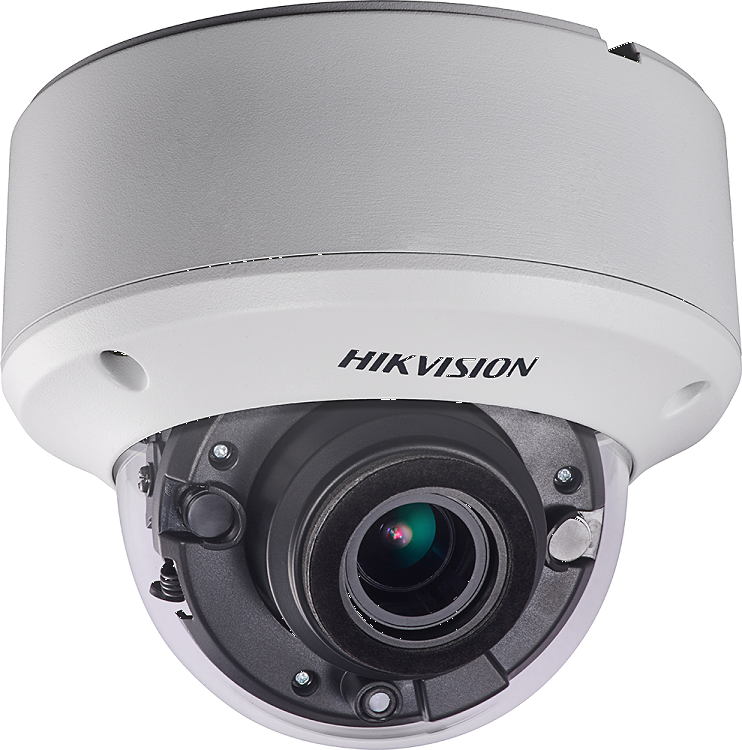

DS-2CE59U8T-AVPIT3Z(2.8-12mm)

Key Features   8.29 MP high performance COMS   Ultra-low light   3840 x 2160 resolution   Auto focus, 2.8 mm to 12 mm motorized vari-focal lens   120 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 60 m IR distance   Dual video output: TVI/CVBS   Dual voltage input: 12 VDC ±25%/24 VAC ±25%   IP67, IK10   Up the coax (HIKVISION-C)    DS-2CE59U8T-(A)VPIT3Z  4K Ultra-Low Light VF Dome Camera        Camera  Image Sensor 8.29 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Resolution 3840 (H) x 2160 (V)  Min. illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/10,000 s  NTSC: 1/15 s to 1/10,000 s  Slow Shutter Max. 16 times  Lens 2.8 mm to 12 mm motorized vari-focal lens  Horizontal Field of View 108.1° to 45.6°  Lens Mount Φ14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) 120 dB  Menu  AGC Support  Day/Night Mode Auto/Color/BW (Black and...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CE59U7T-AVPIT3ZF(2.7-13.5mm)

Ersatzproduktcode: 300612505

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 8.29 MP high performance COMS
 Ultra-low light
 3840 x 2160 resolution
 Auto focus, 2.8 mm to 12 mm motorized vari-focal lens
 120 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 60 m IR distance
 Dual video output: TVI/CVBS
 Dual voltage input: 12 VDC ±25%/24 VAC ±25%
 IP67, IK10
 Up the coax (HIKVISION-C)

DS-2CE59U8T-(A)VPIT3Z
4K Ultra-Low Light VF Dome Camera



Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Resolution 3840 (H) x 2160 (V)
Min. illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/10,000 s
NTSC: 1/15 s to 1/10,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm to 12 mm motorized vari-focal lens
Horizontal Field of View 108.1° to 45.6°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual/Natural
Privacy Mask ON/OFF, 4 programmable privacy masks
BLC (Backlight Compensation) Support
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English
Functions Contrast, Sharpness, Saturation, Mirror, Defog, HLC
Interface
TVI Video Output 1 HD analog output
CVBS Video Output 1 CVBS output (75Ω/BNC)
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC ±25%
-A: 12 VDC ±25%, 24 VDC ±25%
Power Consumption
Max. 9 W
-A: Max. 10.5 W
Protection Level IP67, IK10
Material Metal
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Φ 145.2 mm x 124.1 mm (Φ 5.72" x 4.89" )
Weight Approx. 645 g (1.42 lb.)
Specification



Order Models
DS-2CE59U8T-VPIT3Z, DS-2CE59U8T-AVPIT3Z
Dimension
4
6

m
m

(
1
.
8
'
'
)
83.5 mm (3.3'')
46 mm (1.8'')
8
3
.
5

m
m

(
3
.
3
'
'
)
Φ

1
4
5
.
2

m
m

(
7
.
1
'
'
)
1
2
4
.
1

m
m

(
4
.
9
'
'
)


Accessory

DS-1273ZJ-140
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1276ZJ
Corner Mounting Bracket

DS-1271ZJ-140
Pendant Mounting Bracket

DS-1273ZJ-140B
Wall Mounting Bracket

DS-1241ZJ
In-ceiling Mounting Bracket

DS-1240ZJ
Inclined Ceiling Mounting Bracket
