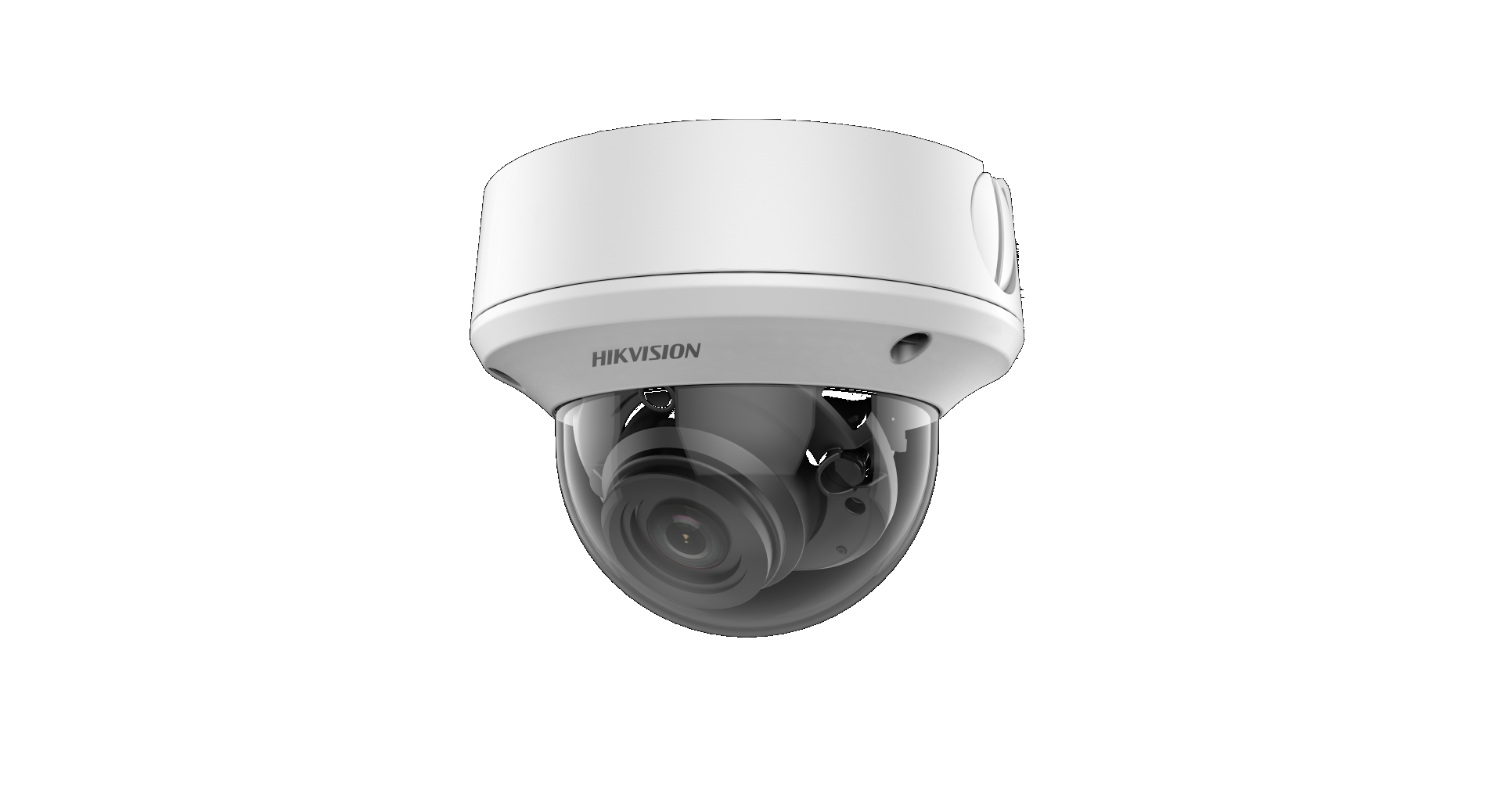

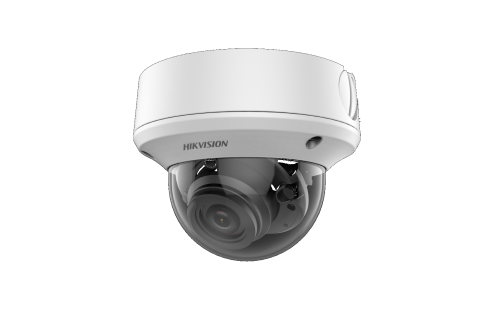

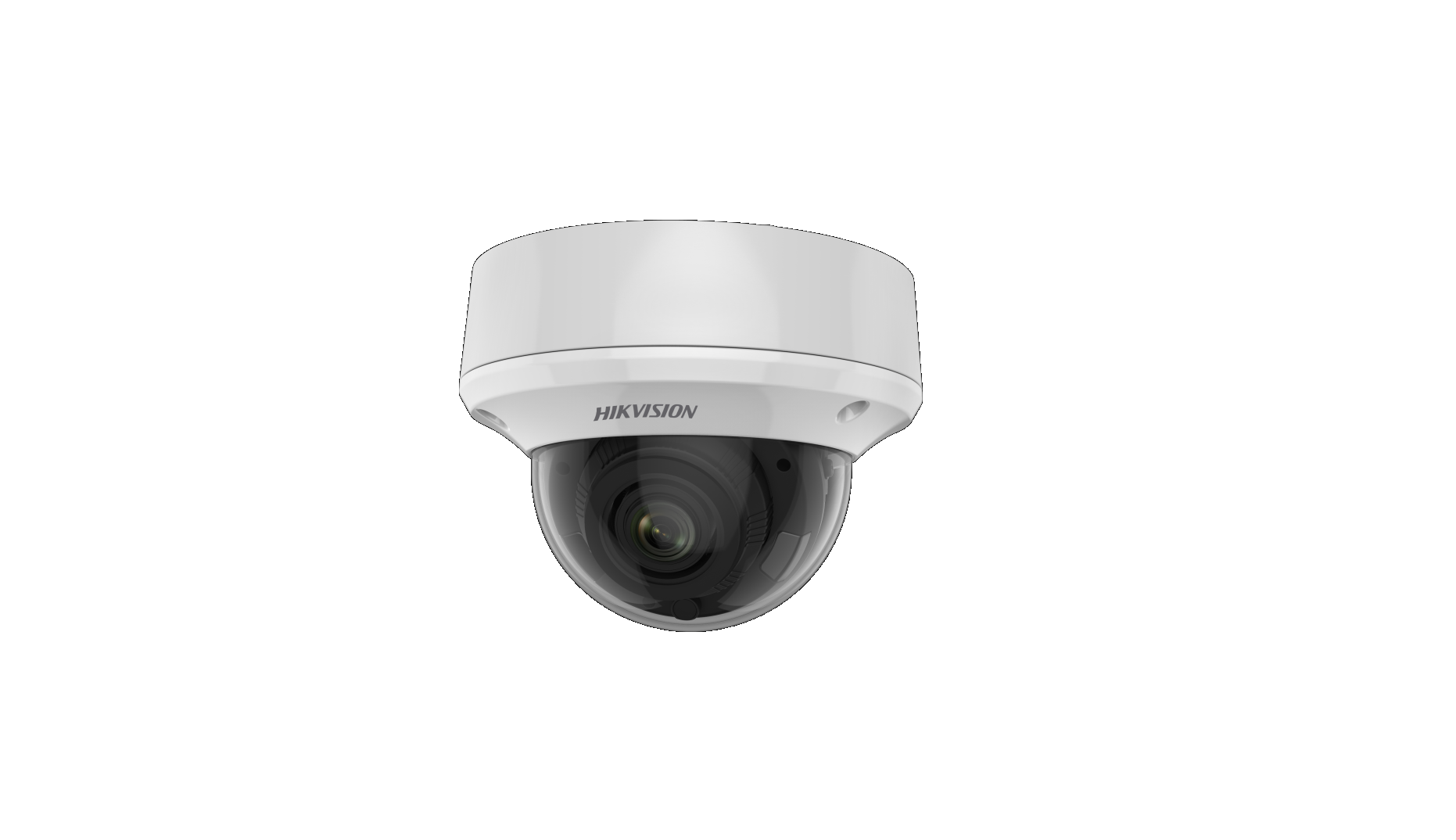

DS-2CE5AU1T-VPIT3ZF(2.7-13.5mm)

Key Features   8.29 MP high performance CMOS   Auto focus   3840 x 2160 resolution   2.7 mm to 13.5 mm motorized vari-focal lens   EXIR 2.0, smart IR, up to 60 m IR distance   OSD menu, DNR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE5AU1T-(A)VPIT3ZF  8 MP Dome Camera              Camera  Image Sensor 8.29 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,  2MP@30fps  CVI: 8MP@12.5fps, 8MP@15fps  AHD: 5MP@20fps  CVBS: 960H P/N  Resolution 3840 (H) x 2160 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.7 mm to 13.5 mm motorized vari-focal lens  Horizontal Field of View 108.1° to 45.6°  Lens Mount Φ14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°  Synchronization Internal synchronization  DWDR (Digital Wide Dynamic Range) 105 dB  Menu  AGC Yes  D/N Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual ...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 8.29 MP high performance CMOS
 Auto focus
 3840 x 2160 resolution
 2.7 mm to 13.5 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 60 m IR distance
 OSD menu, DNR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

DS-2CE5AU1T-(A)VPIT3ZF
8 MP Dome Camera






Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 5MP@20fps
CVBS: 960H P/N
Resolution 3840 (H) x 2160 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5s to 1/50, 000 s
NTSC: 1/15 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 108.1° to 45.6°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Synchronization Internal synchronization
DWDR (Digital Wide Dynamic Range) 105 dB
Menu
AGC Yes
D/N Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC Yes
DWDR (Digital Wide Dynamic Range) Yes
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
9 VDC to 15 VDC
-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
Power Consumption
Max. 6.4 W
-A: Max. 8.2 W
Protection Level IP67
Material Metal
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 145 mm x 111.3 mm (Ø 5.69" x 4.37")
Weight Approx. 860 g (1.90lb.)


Order Model
DS-2CE5AU1T-VPIT3ZF, DS-2CE5AU1T-AVPIT3ZF
Dimension
Ø 145 mm (5.69")
Ø 139.9 mm
(5.49")
111
.3
mm
(4
.37
")






























Accessory












DS-1273ZJ-140-DM45
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-DM45
Junction Box










DS-1281ZJ-DM45
Inclined Ceiling Mount
DS-1271ZJ-140-DM45
Pendant Mount
