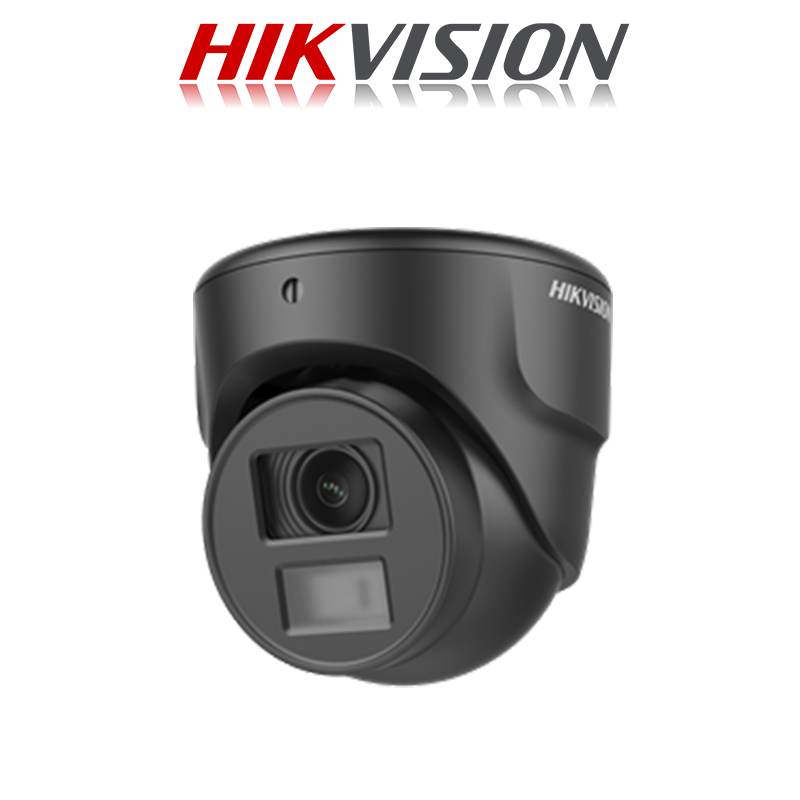

DS-2CE70D0T-ITMF(3.6mm)

Key Feature  * 2 MP, 1920 x 1080 resolution  * 2.8 mm, 3.6 mm, 6 mm fixed focal lens  * Smart IR, up to 20 m IR distance  * 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  * IP67    DS-2CE70D0T-ITMF  2 MP Camera            Specification     Camera  Image Sensor 2 MP CMOS  Signal System PAL/NTSC  Effective Pixels 1920 (H) x 1080 (V)  Frame Rate  TVI: 1080P@25fps, 1080P@30fps  AHD: 1080P@25fps, 1080P@30fps  CVI: 1080P@25fps, 1080P@30fps  CVBS: P/N  Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL:1/25 s to 1/50,000 s  NTSC:1/30 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed lens  Horizontal Field of View 106° (2.8 mm), 80° (3.6 mm), 51° (6 mm)  Lens Mount M12  Day & Night ICR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 80°, Rotation: 0° to 360°  Menu  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto  AE (Auto Exposure) Mode Global/BLC/HLC/DWDR  Noise Reduction 2D DNR  Language English  Function Brightness, Sharpness, Mirror, Smart IR  Interface  Video Output Switchable TVI/AHD/CVI/CVBS  General  ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CE76D0T-ITMF(3.6mm)(C)

Ersatzproduktcode: 300613697

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Feature
* 2 MP, 1920 x 1080 resolution
* 2.8 mm, 3.6 mm, 6 mm fixed focal lens
* Smart IR, up to 20 m IR distance
* 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
* IP67

DS-2CE70D0T-ITMF
2 MP Camera





Specification

Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Effective Pixels 1920 (H) x 1080 (V)
Frame Rate
TVI: 1080P@25fps, 1080P@30fps
AHD: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
CVBS: P/N
Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL:1/25 s to 1/50,000 s
NTSC:1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 106° (2.8 mm), 80° (3.6 mm), 51° (6 mm)
Lens Mount M12
Day & Night ICR
WDR Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 80°, Rotation: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto
AE (Auto Exposure) Mode Global/BLC/HLC/DWDR
Noise Reduction 2D DNR
Language English
Function Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less
(non-condensing)
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power
for one camera.
Power Consumption Max. 3.6 W
Protection Level IP67
Material Metal
IR Range Up to 20 m
Communication HIKVISION-C
Dimensions Φ 61.12 mm x 60 mm (Φ 2.57" x 2.56")
Weight 160 g (0.35 lb.)



Order Model
DS-2CE70D0T-ITMF
Dimension
60
mm
(2
.56
'')
