DS-2CE71D0T-PIRL(3.6mm)

Key Features   2 MP high performance CMOS   1920 x 1080 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, visual alarm   EXIR 2.0, smart IR, up to 20 m IR distance   IP67   Up the coax (HIKVISION-C)    DS-2CE71D0T-PIRL  2 MP PIR Turret Camera        Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed focal lens  Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm)  Lens Mount M12  Visual Alarm Yes  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  Menu  White Light Alarm/Off  AGC Low/middle/high  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  Backlight Compensation Yes  Language English, Chinese  Functions Brightness, Contrast, Sharpness, Saturation, DNR, Mirror  Interface  Video Output 1 HD analog output  Gen...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 2 MP high performance CMOS
 1920 x 1080 resolution
 2.8 mm, 3.6 mm fixed focal lens
 PIR detection, visual alarm
 EXIR 2.0, smart IR, up to 20 m IR distance
 IP67
 Up the coax (HIKVISION-C)

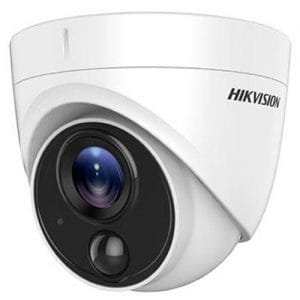

DS-2CE71D0T-PIRL
2 MP PIR Turret Camera



Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm fixed focal lens
Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm)
Lens Mount M12
Visual Alarm Yes
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
Menu
White Light Alarm/Off
AGC Low/middle/high
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
Backlight Compensation Yes
Language English, Chinese
Functions Brightness, Contrast, Sharpness, Saturation, DNR, Mirror
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4 W
Ingress Protection IP67
Material
Enclosure: Plastic
Main body: Metal
IR Range Up to 20 m
PIR Range Angle: 110°, Range:11 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 109.8 mm x 89.75 mm (Ø 4.32" x 3.53" )
Weight Approx. 310 g (0.68 lb.)

Order Model
DS-2CE71D0T-PIRL
Specification



Dimension
Ø

1
0
9
.
8
2

m
m

(
4
.
3
2"

)
Ø

8
5

m
m

(
3
.
3
5"

)
8
9.
7
5

m
m

(
3
.
5
3"

)
Ø

4
.
2

m
m

(
0
.
1
6
5
"

)


Accessary




DS-1272ZJ-110-TRS Wall Mount


DS-1275ZJ-SUS Vertical Pole Mount


DS-1276ZJ-SUS Corner Mount


DS-1280ZJ-S Junction Box





DS-1281ZJ-S Inclined Ceiling Mount




020000180507
