DS-2CE71D0T-PIRLPO(3.6mm)

Key Feature   2 MP CMOS   1920 x 1080 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71D0T-PIRLPO  2 MP PIR Turret Camera          Camera  Image Sensor 2 MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed lens  Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode DWDR/BLC/HLC/Global  Noise Reduction 2D DNR  Language English  Functions Brightness, Sharpness, Mirror, Smart IR  Interface  Video Output 1 HD analog output  Alarm 1 alarm out  General  Operating Conditi...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Feature
 2 MP CMOS
 1920 x 1080 resolution
 2.8 mm, 3.6 mm fixed focal lens
 PIR detection, strobe light alarm, alarm out
 Smart IR, up to 20 m IR distance
 IP67
 HIKVISION-C

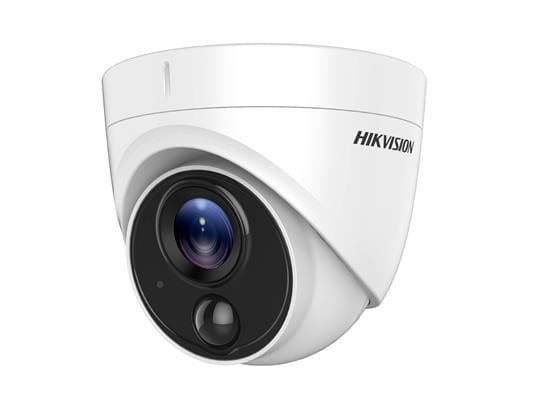

DS-2CE71D0T-PIRLPO
2 MP PIR Turret Camera




Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm fixed lens
Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm)
Lens Mount M12
Strobe Light Alarm Yes
Day & Night ICR
WDR Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Menu
White Light Alarm/Off
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR/BLC/HLC/Global
Noise Reduction 2D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Alarm 1 alarm out
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
Power Consumption Max. 2.9 W
Ingress Protection IP67
Material
Enclosure: Plastic
Main body: Plastic
IR Range Up to 20 m
PIR Angle and Range Angle: 110°, Range:11 m
White Light Range Up to 20 m
Communication HIKVISION-C
Dimensions Φ 109.8 mm x 89.75 mm (Φ 4.32" x 3.53")
Weight Approx. 237 g (0.52 lb.)

Specification



Dimension
Ø

1
0
9
.
8
2

m
m

(
4
.
3
2"

)
Ø

8
5

m
m

(
3
.
3
5"

)
8
9.
7
5

m
m

(
3
.
5
3"

)
Ø

4
.
2

m
m

(
0
.
1
6
5
"

)


Accessary




DS-1272ZJ-110-TRS Wall Mount


DS-1275ZJ-SUS Vertical Pole Mount


DS-1276ZJ-SUS Corner Mount


DS-1280ZJ-S Junction Box





DS-1281ZJ-S Inclined Ceiling Mount




Order Model
DS-2CE71D0T-PIRLPO
010000181220
