DS-2CE71D8T-PIRL(3.6mm)

Key Features   2 MP high performance CMOS   Ultra-low light   1920 x 1080 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, visual alarm   120 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 20 m IR distance   IP67   Up the coax (HIKVISION-C)    DS-2CE71D8T-PIRL  2 MP Ultra-Low Light PIR Turret Camera        Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm fixed focal lens  Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm)  Lens Mount M12  Visual Alarm Yes  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) > 120 dB  Menu  White Light Alarm/Off  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance ATW/MANUAL  Privacy Mask ON/OFF, 4 programmable privacy masks  Mot...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 2 MP high performance CMOS
 Ultra-low light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm fixed focal lens
 PIR detection, visual alarm
 120 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 20 m IR distance
 IP67
 Up the coax (HIKVISION-C)

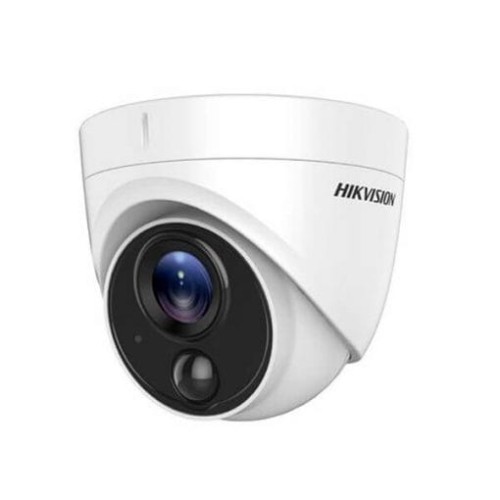

DS-2CE71D8T-PIRL
2 MP Ultra-Low Light PIR Turret Camera



Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm fixed focal lens
Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm)
Lens Mount M12
Visual Alarm Yes
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
White Light Alarm/Off
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.5 W
Ingress Protection IP67
Material
Enclosure: Plastic
Main body: Metal
Mounting base: Plastic
IR Range Up to 20 m
PIR Range Angle: 110°, Range:11 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 109.8 mm x 89.75 mm (Ø 4.32" x 3.53" )
Weight Approx. 310 g (0.68 lb.)
Specification



Order Models
DS-2CE71D8T-PIRL
Dimension
Ø

1
0
9
.
8
2

m
m

(
4
.
3
2
"

)
Ø

8
5

m
m

(
3
.
3
5
"

)
8
9
.
7
5

m
m

(
3
.
5
3
"

)
Ø

4
.
2

m
m

(
0
.
1
6
5
"

)


Accessary

DS-1272ZJ-110-TRS
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1276ZJ
Corner Mounting Bracket

DS-1280ZJ-M
Junction Box

DS-1281ZJ-S
Inclined Ceiling Mounting Bracket


DS-1H18
Video Balun
