DS-2CE76H0T-ITPF(2.8mm)(C)

DS-2CE76H0T-ITPF(C)  5 MP Camera          • 5 MP, 2560 x 1944 resolution  • 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • Smart IR, up to 20 m IR distance  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)        Specification    Camera  Image Sensor5 MP CMOS  Signal SystemPAL/NTSC  Resolution2560 (H) x 1944 (V)    Frame Rate  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps  AHD: 5M@20fps, 4M@30fps, 4M@25fps  CVI: 4M@30fps, 4M@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black and White) ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CE76H0T-ITPFS(2.8mm)

Ersatzproduktcode: 300613327

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

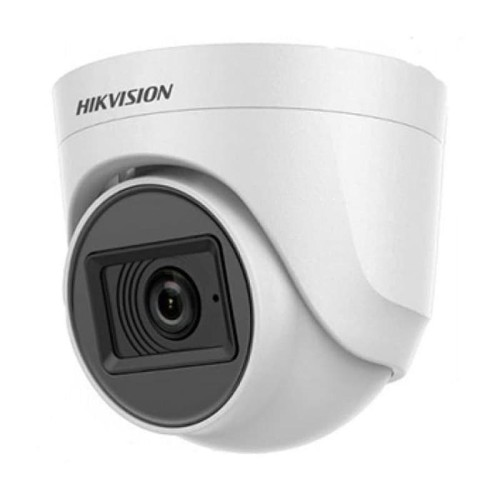

DS-2CE76H0T-ITPF(C)
5 MP Camera




• 5 MP, 2560 x 1944 resolution
• 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Smart IR, up to 20 m IR distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)



Specification

Camera
Image Sensor5 MP CMOS
Signal SystemPAL/NTSC
Resolution2560 (H) x 1944 (V)

Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC

Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View
2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°

Lens MountM12
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeDWDR/BLC/HLC/Global
Noise Reduction2D DNR
LanguageEnglish
FunctionBrightness, Sharpness, Mirror, Smart IR
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply12 VDC ± 25%
Power ConsumptionMax. 4.3 W
MaterialPlastic
IR RangeUp to 20 m
CommunicationHIKVISION-C


General
DimensionsΦ 84.6 mm x 78.9 mm (Φ 3.33" x 3.11")
WeightApprox. 143 g (0.32 lb.)

Available Model
DS-2CE76H0T-ITPF(C)
Dimension

Accessory

DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount




DS-1280ZJ-XS
Junction Box
