DS-2CE78U8T-IT3(3.6mm)

Key Features   8.29 MP high performance COMS   Ultra-low light   3840 x 2160 resolution   2.8 mm, 3.6 mm, 6 mm fixed focal lens   120 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 60 m IR distance   IP67   Up the coax (HIKVISION-C)    DS-2CE78U8T-IT3  4K Ultra-Low Light Turret Camera        Camera  Image Sensor 8.29 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Resolution 3840 (H) x 2160 (V)  Min. illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/10,000 s  NTSC: 1/15 s to 1/10,000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens  Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)  Lens Mount M12  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) 120 dB  Menu  AGC Support  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual/Natural  Privacy Mask ON/OFF, 4 programmable ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2CE78U7T-IT3F(3.6mm)

Ersatzproduktcode: 300612715

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 8.29 MP high performance COMS
 Ultra-low light
 3840 x 2160 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 120 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 60 m IR distance
 IP67
 Up the coax (HIKVISION-C)

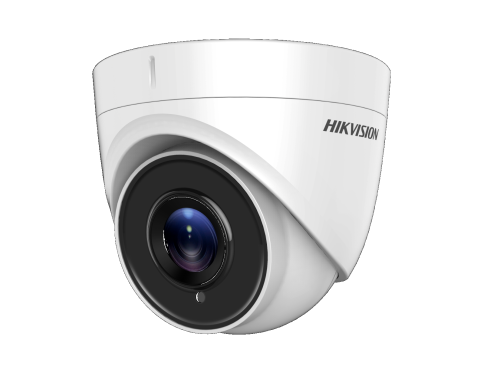

DS-2CE78U8T-IT3
4K Ultra-Low Light Turret Camera



Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Resolution 3840 (H) x 2160 (V)
Min. illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/10,000 s
NTSC: 1/15 s to 1/10,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual/Natural
Privacy Mask ON/OFF, 4 programmable privacy masks
BLC (Backlight Compensation) Support
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English
Functions Contrast, Sharpness, Saturation, Mirror, Defog, HLC
Interface
TVI Video Output 1 HD analog output
CVBS Video Output 1 CVBS output (75Ω/BNC)
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.8 W
Protection Level IP67
Material
Enclosure: Plastic
Main Body: Metal
Mounting Base: Plastic
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 109.8 mm x 96.3 mm (Ø 4.32" x 3.79" )
Weight Approx. 360 g (0.79 lb.)
Specification



Order Models
DS-2CE78U8T-IT3
Dimension
9
6
.
3
1

m
m

(
3
.
7
9
"

)
Ø

1
0
9
.
8
2

m
m

(
4
.
3
2
"

)
Ø

8
5

m
m

(
3
.
3
5
"

)
3
-
Ø

4
.
2

m
m

(
0
.
1
7
"

)


Accessory

DS-1272ZJ-110-TRS
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1276ZJ
Corner Mounting Bracket

DS-1280ZJ-M
Junction Box

DS-1281ZJ-S
Inclined Ceiling Mounting Bracket


DS-1H18
Video Balun
