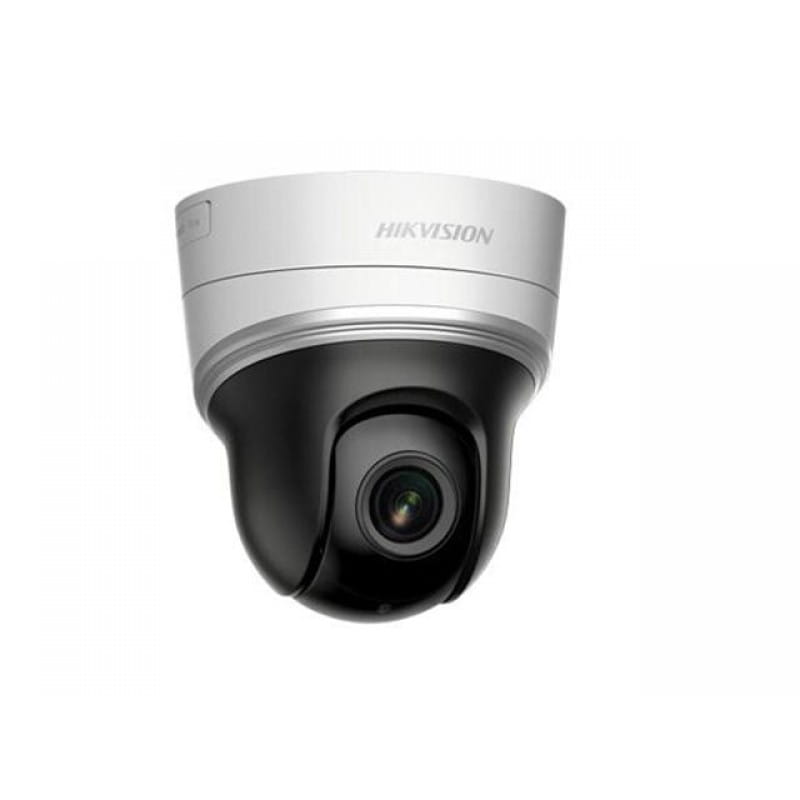

DS-2DE2204IW-DE3

This IR Mini PTZ Camera shows the easy installation,  adjustment, and maintenance. It is a camera for indoor  area such as the café, hotel, office lobby, small shop, etc.  In addition, DS-2DE2204IW supports 4x zoom, Hik Cloud  P2P function, and PoE & 12VDC power supply. Embedded  with 1/2.8" progressive scan CMOS chip makes DWDR and  2.0MP real-time resolution possible. With the pan/tilt, 4x  zoom Day/Night IR cut filter, and the IR lights, the camera  offers more details in the indoor environments.  Hikvision DS-2DE2204IW Mini PTZ Camera also features a  wide range of functions, including intrusion detection,  line crossing detection, audio exception detection,  motion detection, and video tampering detection,  benefitting users with great improvement on security  efficiency, more importantly, with key events/objects  being recorded for further forensic needs.      Key Features  * 1/2.8" Progressive Scan CMOS  * 1920 x 1080@30fps Resolution  * 4x Zoom  * DWDR  * 3D positioning  * PoE (802.3af)  * Hik cloud P2P  * Up to 30m IR distance        DS-2DE2204IW-DE3  2.0 MP Network IR Mini PTZ Camera      Function Description...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

This IR Mini PTZ Camera shows the easy installation,
adjustment, and maintenance. It is a camera for indoor
area such as the café, hotel, office lobby, small shop, etc.
In addition, DS-2DE2204IW supports 4x zoom, Hik Cloud
P2P function, and PoE & 12VDC power supply. Embedded
with 1/2.8" progressive scan CMOS chip makes DWDR and
2.0MP real-time resolution possible. With the pan/tilt, 4x
zoom Day/Night IR cut filter, and the IR lights, the camera
offers more details in the indoor environments.
Hikvision DS-2DE2204IW Mini PTZ Camera also features a
wide range of functions, including intrusion detection,
line crossing detection, audio exception detection,
motion detection, and video tampering detection,
benefitting users with great improvement on security
efficiency, more importantly, with key events/objects
being recorded for further forensic needs.


Key Features
* 1/2.8" Progressive Scan CMOS
* 1920 x 1080@30fps Resolution
* 4x Zoom
* DWDR
* 3D positioning
* PoE (802.3af)
* Hik cloud P2P
* Up to 30m IR distance



DS-2DE2204IW-DE3
2.0 MP Network IR Mini PTZ Camera


Function Description
Basic Function
* H.265/H.264/MJPEG video compression, up to 1920 x 1080@30fps resolution
* PoE (802.3af)
* Mirror, and one-key restore
* Supports Hikvision SDK, ONVIF, CGI, PSIA, and Hik Cloud P2P
* 3D positioning
* ±0.1° preset accuracy
* Power-off memory: restore PTZ and Lens status after reboot
Smart Function
* Smart detection: intrusion detection, line crossing detection, audio exception detection, motion detection, and
video tampering detection
* Smart recording: edge storage, smart search in smart NVR, and VCA playback
* Smart image Enhancement: HLC (High Light Compensation)
* Smart encoding: low bitrate, and ROI (Region of Interest) encoding
* Smart alarm: alarm for network disconnection, IP address conflict, HDD full, HDD error, and illegal login
IR Function
* Up to 30m IR distance
* Smart IR avoids overexposure
* 30,000 hours’ lifespan
Camera Function
* 4 x optical zoom, 16 x digital zoom
* Auto iris, auto focus, auto white balance, backlight compensation and 3D DNR
* Min. Illumination: 0.05Lux@(F2.0, AGC ON) (Color), 0.005Lux@(F2.0, AGC ON) (B/W)
PTZ Function
* 0° to 350° pan range, and 0° to 90° tilt range
* 0.1° to 60°/s manual pan speed, and 0.1° to 50°/s manual tilt speed
* 300 programmable presets
* 8 patrols, up to 32 presets for each patrol
* Proportional zoom, and park action
* 1 alarm input, 1 alarm output, and alarm linkage which is able to perform alarm actions, such as Send Email,
Notify Surveillance Center, Upload to FTP/Memory Car/NAS, Trigger Recording, etc.
Network Function
* Micro SD/SDHC/SDXC card storage, up to 128GB
* Built-in microphone with 1 audio input and 1 audio output
* Supports NAS storage, and able to transmit the videos from Memory card to the NAS after network resumed
* HTTPS encryption and IEEE 802.1x port-based network access control
* Supports three streams, H.265+/H.265/H.264+/H.264/MJPEG video compression, and baseline, main and high
profiles
* Supports multiple network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS,
DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour




Specification
Camera Module DS-2DE2204IW-DE3
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @ (F2.0, AGC ON)
Day & Night IR Cut Filter
Focus Mode Auto
Shutter Speed 1/1 to 1/10,000s
Digital Zoom 16x
White Balance Auto/manual/ATW (auto tracing white balance)/indoor/outdoor/daylight lamp/sodium
lamp
AGC Auto/Manual
Backlight Compensation Support
Wide Dynamic Range Support
DNR (Digital Noise
Reduction)
Support
Privacy Mask 8 programmable privacy masks
Lens
Focal Length 2.8 to 12mm, 4x
Field of View 100° to 25° (wide-tele)
Working Distance 10 to 1500mm (wide-tele)
Zoom Speed Approx. 2s (optical lens, wide-tele)
Aperture Range F1.8 to F2.5
Smart
Smart Detection
Intrusion detection, line crossing detection, audio exception detection, motion
detection, and video tampering detection
Smart Recording Edge storage, smart search in smart NVR, and VCA playback
Smart Image Enhancement HLC
Smart Encoding Low bitrate, and ROI (Region of Interest) encoding
Smart Alarm
Alarm for network disconnection, IP address conflict, HDD full, HDD error, and illegal
login
Network
Stream Support three streams
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream 50Hz:25fps(704x576,640x480,352x288);60Hz:30fps(704x480,640x480,352x240)
Three Stream
50Hz:25fps (1920x1080,1280x960,1280x720,704x576,640x480,352x288);
60Hz: 30fps(1920x1080,1280x960,1280x720,704x480,640x480,352x240)
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Audio compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 users
User/Host Up to 32 users, 3 levels: Administrator, Operator, and User
Security Measures
User authentication (ID and PW), host authentication (MAC address), IP address
filtering, HTTPS encryption and IEEE 802.1x port-based network access control
Pan and Tilt
Movement Range Pan: 350°, Tilt: 0° to 90°
Movement Speed Pan: 0.1° to 60°/s, Tilt: 0.1°to 50°/s

Preset No. 300
Patrol 8 patrols, up to 32 presets per patrol
Park Action Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama scan
Scheduled Task
Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama
scan/dome reboot/dome adjust/aux output
Proportional Zoom Support
Power-off Memory Support
Position Display On/ Off
IR
IR Distance Up to 30m
Smart IR Support
System Integration
Alarm I/O 1 alarm input, 1 alarm output
Alarm Linkage
Alarm actions, such as Send Email, Notify Surveillance Center, Upload to FTP/Memory
Car/NAS, Trigger Recording etc.
Audio I/O 1 audio input, 1 audio output
Ethernet 1 RJ45 10M/100M Ethernet interface
Memory Card Built-in memory card slot, supporting SD/SDHC/SDXC, up to 128GB
Client iVMS-4200
Web Browser IE7+, Chrome18+, Firefox5.0+, Safari5.02+
General
Power DC 12V, and PoE (802.3af, class3)
Max.: 9W
Working Temperature -10°C to 50°C (-14°F to 122°F)
Working Humidity ≤ 90%
Protection Level TVS 4,000V lightning protection, and surge protection
Dimensions(mm) Φ125mm x 137.2mm (Φ4.9"x5.4")
Weight Approx. 0.65kg (1.4lb)


Order Model
DS-2DE2204IW-DE3
Dimension
Ф125
137.2Ф83.5
3-Ф4.5


Accessory

DS-1294ZJ
