DS-2DE2A404IW-DE3(2.8-12mm)(C)

Verfügbarkeit: 0
Preis: 313,33 € 313.33
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 301315132

Beschreibung

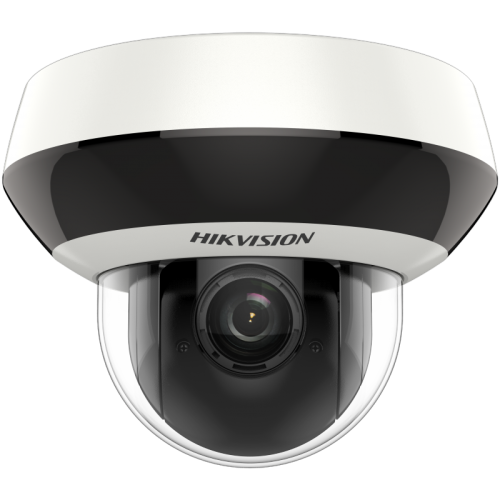

Hikvision DS-2DE2A404IW-DE3(2.8-12MM)(B) 4MP 4x IR  Network PTZ Camera can be widely used in multiple  scenes, such as the corridor, office, convenience store,  and restaurant, etc.  Key Features  * 1/3" progressive scan CMOS  * Up to 2560 x 1440@25fps resolution  * Min. illumination:  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  * 4x optical zoom, 16x digital zoom  * 120 dB WDR, 3D DNR, EIS, Regional Exposure,  Regional Focus  * 12 VDC & PoE  * Up to 20 m IR distance  * IK10, IP66  * Support H.265+/H.265 video compression  * Built-in microphone      DS-2DE2A404IW-DE3(2.8-12MM)(B)  4MP 4x IR PTZ Network Camera          05060020190302  Specification  Camera Module  Image Sensor 1/3" progressive scan CMOS  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  White Balance  Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent  Lamp/Sodium Lamp  Gain Auto/Manual  Shutter Time  50Hz: 1/1 s to 1/30,000 s  60Hz: 1/1 s to 1/30,000 s  Day & Night IR cut filter  Digital Zoom 16x  Privacy Mask 24 programmable privacy ma...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2DE2A404IW-DE3(C0)(S6)

Ersatzproduktcode: 327000214

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Hikvision DS-2DE2A404IW-DE3(2.8-12MM)(B) 4MP 4x IR
Network PTZ Camera can be widely used in multiple
scenes, such as the corridor, office, convenience store,
and restaurant, etc.
Key Features
* 1/3" progressive scan CMOS
* Up to 2560 x 1440@25fps resolution
* Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
* 4x optical zoom, 16x digital zoom
* 120 dB WDR, 3D DNR, EIS, Regional Exposure,
Regional Focus
* 12 VDC & PoE
* Up to 20 m IR distance
* IK10, IP66
* Support H.265+/H.265 video compression
* Built-in microphone


DS-2DE2A404IW-DE3(2.8-12MM)(B)
4MP 4x IR PTZ Network Camera




05060020190302
Specification
Camera Module
Image Sensor 1/3" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day & Night IR cut filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 2.8 mm to 12 mm, 4x optical zoom
Zoom Speed Approx. 2 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 96.7° to 31.6° (Wide-Tele)
Vertical field of view: 51.1° to 17.7° (Wide-Tele)
Diagonal field of view: 115.1° to 36.3° (Wide-Tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F2.7
PTZ
Movement Range (Pan) 0° to 355°
Pan Speed
Configurable, from 0.1°/s to 100°/s,
Preset speed: 100°/s
Movement Range (Tilt) From 0° to 90°
Tilt Speed Configurable, from 0.1°/s to 100°/s
Preset Speed: 100°/s
Proportional Zoom Yes
Presets 300
Power-off Memory Yes
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Yes
H.265+ Yes
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVC Yes
Smart Features
Basic Event Motion Detection, Video Tampering Detection, Exception
Smart Event
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection,
Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio
Exception Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA



05060020190302
ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
IR
IR Distance 20 m
Smart IR Yes
Max. Resolution 2560 x 1440
Main Stream
50Hz: 25fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 24fps (2560 x 1440), 30fps(2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream 50Hz: 25fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement 3D DNR, EIS, Regional Exposure, Regional Focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/
CIFS), ANR
Alarm Linkage
Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance
Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Audio Interface 1-ch audio input (mic in/line in) and 1-ch audio output (line out)
1 built-in microphone
Network Interface 1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
Power Output 12VDC, max. 60 mA
General
Language (Web Browser
Access )
32 languages.
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power 12 VDC (Max. 10.9 W, including Max. 4.2 W for IR)
PoE 802.3af (Max. 12.2 W, including Max. 4.2 W for IR)
Working Temperature -20°C to 60°C (-4°F to 140°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, IK 10, Surge Protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5
Material Aluminum alloy, PC, PC+ABS
Dimensions Φ 130.7 mm x 101.7 mm (Φ 5.15" x 4.00")
Weight Approx. 0.53 kg (1.17 lb)





05060020190302
DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish
persons or objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.
DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 180.0 m (590.6 ft) 71.4 m (234.3 ft) 36.0 m (118.1 ft) 18.0 m (59.1 ft)

Available Model
DS-2DE2A404IW-DE3(2.8-12MM)(B), 12 VDC & PoE

Dimensions
101
.7
mm
(4
.00
")
φ80.7mm(3.18")
Φ120mm(4.72")
φ130.7mm(5.15")
83.5mm(3.29")
46
mm
(1
.81
")
6-φ4.5mm(0.18")
1/4-20UNC



Accessory
Optional:




DS-1294ZJ-PT
Wall Mount
DS-1297ZJ
Pendant Mount (extendable)
DS-1299ZJ
Pendant Mount
DS-1297ZJ-ES
Pendant mount (extendable)




DS-1297ZJ-M
Pendant Mount (extendable) LAS60-57CN-RJ45
Hi-PoE midspan
MSA-C1500IC12.0-18P-US
MSA-C1500IC12.0-18P-GB
MSA-C1500IC12.0-18P-JP
Power adapter
