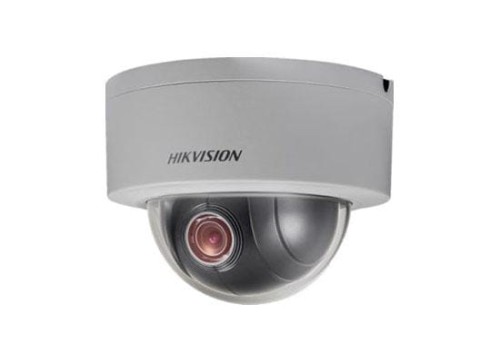

DS-2DE3304W-DE
3MP Network Mini PTZ Dome Camera

Key Features
This Micro-designed 3’’ PTZ Mini Dome Camera shows the
easiest installation, adjustment and maintenance that you
have ever seen. It is a fantastic and practical camera for
outdoor. In addition, DS-2DE3304W-DE support 4X zoom
technology, and PoE&12VDC power supply. Embedded with
1/2.8’’ progressive scan CMOS chip makes DWDR and 3MP
real-time resolution possible. With the pan/tilt and 4X zoom
Day/Night lens, the camera offers more details in the outdoor
environments.
Hikvision DS-2DE3304W-DE Mini PTZ Dome Cameras also
features a wide range of functions, including intrusion
detection, line crossing detection, motion detection and
audio exception, benefitting users with great improvement
on security efficiency, more importantly, with key events /
objects being recorded for further forensic needs.

* 1/2.8" Progressive Scan CMOS
* 2048 x 1536
* 4X Optical Zoom
* DWDR
* Support IP66/IK10
* PoE(802.3af)
* Support RS485
* Support plug & play




Basic function
 High performance CMOS, up to 2048 x 1536@30fps resolution
 ±0.1° Preset Accuracy
 ONVIF(Open Network Video Interface Forum), CGI(Common Gateway Interface), PSIA(Physical
Security Interoperability Alliance), to ensure greater interoperability between different platforms
and compatibility
 3D intelligent positioning function
 Power-off memory function: restore PTZ & Lens status after reboot
 Support RS485
 Support IP66/IK10
 PoE(802.3af)
Functions
 Detections: intrusion detection, line crossing detection, audio exception detection, motion
detection
 Recording: edge recording, support smart search in smart NVR
 Support low bit rate, ROI
Camera function
 Auto iris, auto focus, auto white balance, backlight compensation and auto day & night switch
 Min. Illumination: 0.05Lux@(F1.6,AGC ON)(Color), 0.01Lux@(F1.6,AGC ON)(B/W)
 Support 8 privacy masks
PTZ functions
 0-350° pan range and 0°-90° tilt range
 0.1°-60°/s Manual Pan Speed and 0.1°-50°/s Manual Tilt Speed
 300 presets programmable;
 8 patrols, up to 32 presets per patrol
Network function
 Built-in Web server
 Micro SD card local storage, up to 128GB
 Support up to 8 NAS storage; Transmit the videos from SD card to the NAS after network resumed
 HTTPS encryption and IEEE 802.1x port-based network access control
 Support dual-stream; H.264/H.265/MJPEG video compression; Basic and advanced video
configuration; Real time video at 1920 x 1080
 Multiple network protocols supported: IPv4/IPv6, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP,
PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS
 1 audio input and 1 audio output
 1 alarm input and 1 alarm output, alarm linkage support preset, recording, realay output, upload
center, etc.



Function Description

Specifications
Model DS-2DE3304W-DE
Camera Module
Image Sensor 1/2.8’’ Progressive Scan CMOS
Min. Illumination F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
Max. Image Resolution 2048(H) x 1536(V)
Focal Length 2.8~12mm, 4x
Digital Zoom 16X
Zoom Speed Approx.1s(Wide~Tele)
Angle of View 105~33.5 degree (Wide~Tele)
Aperture Range F1.6 ~F2.7
Focus Mode Auto / Semiautomatic / Manual
DWDR Support
S / N Ratio ≥ 52dB
Shutter Time 1/1~1/10,000s
AGC Auto / Manual
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 8 privacy masks programmable
Enhancement 3D DNR, HLC/BLC
Pan and Tilt
Range Pan: 0~350°; Tilt: 0°~90°
Speed
Pan Manual Speed: 0.1°~60°/s
Tilt Manual Speed: 0.1°~50°/s
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Park Action Preset/Patrol
Scheduled Task Preset / Reboot / Patrol /Self test / Aux output
Features
Detection Intrusion detection, line crossing detection, audio exception detection, motion detection
ROI encoding Support 4 areas with adjustable levels
Alarm
Alarm I/O 1/1
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Audio Exception Detection,
Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Alarm Action Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage




Input/ Output
Audio Input 1 audio input (Mic/Line in), 2~2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 output, Line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Main Stream
50Hz:25fps(2048x1536), 25fps(1920x1080), 25fps(1280x960), 25fps(1280x720)
60Hz:30fps(2048x1536), 30fps(1920x1080), 30fps(1280x960), 30fps(1280x720)
Sub Stream
50Hz:25fps(704x576), 25fps(640x576), 25fps(320x288)
60Hz:30fps(704x480), 30fps(640x480), 30fps(320x240)
Image Compression H.264/MJPEG
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722/PCM
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP,IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20 users
Mini SD Memory Card Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application programming Open-ended API, support Onvif, PSIA, CGI and Genetec
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Power POE&12 VDC, Max. 8W
Working Temperature -30°C ~ 65°C (-22°F ~ 149°F)
Humidity 90% or less
Protection Level IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Dimensions Φ140.7x107.2mm
Weight (approx.) 950g
Mount Option Wall mount: DS-1273ZJ –PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ –PT6










Order Models
DS-2DE3304W-DE, POE&12 VDC










Accessories



Dimensions

DS-1005KI
USB Joy-stick
DS-1100KI
Network Keyboard

DS-1273ZJ-PT6
Wall Mount
1227ZJ-PT6
In-ceiling Mount
DS-1280ZJ-PT6
Junction box
