DS-2DE4215IW-DE(S6)

Verfügbarkeit: 0
Preis: 570,01 € 570.01
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 327000144

Beschreibung

DS-2DE4215IW-DE (S5)  2 MP 15 x IR Network Speed Dome                          Hikvision DS-2DE4215IW-DE (S5) 2 MP 15 x IR Network Speed  Dome adopts 1/2.8" progressive scan CMOS chip. With the 15 x  optical zoom lens, the camera offers more details over  expansive areas.  This series of cameras can be widely used for wide ranges of  high-definition, such as the rivers, roads, railways, airports,  squares, parks, scenic spots, and venues, etc.   Accurate human and vehicle target classification and alarm  based on deep learning algorithm   Support face capture. Up to 5 faces captured at the same time   1/2.8" Progressive Scan CMOS   Up to 1920 x 1080 @30fps resolution   Min. illumination:  Color: 0.005Lux @ (F1.6, AGC ON),  B/W: 0.001Lux @(F1.6, AGC ON),  0 Lux with IR   15 x optical zoom, 16 x digital zoom   WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional  Focus   Up to 100 m IR distance   12VDC & POE (802.3at)   Support H.265+/H.265 video compression           Specification  Camera Module  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.005Lux @ (F1.6, AGC ON); B/W: ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2DE4215IW-DE(T5)

Ersatzproduktcode: 327000470

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

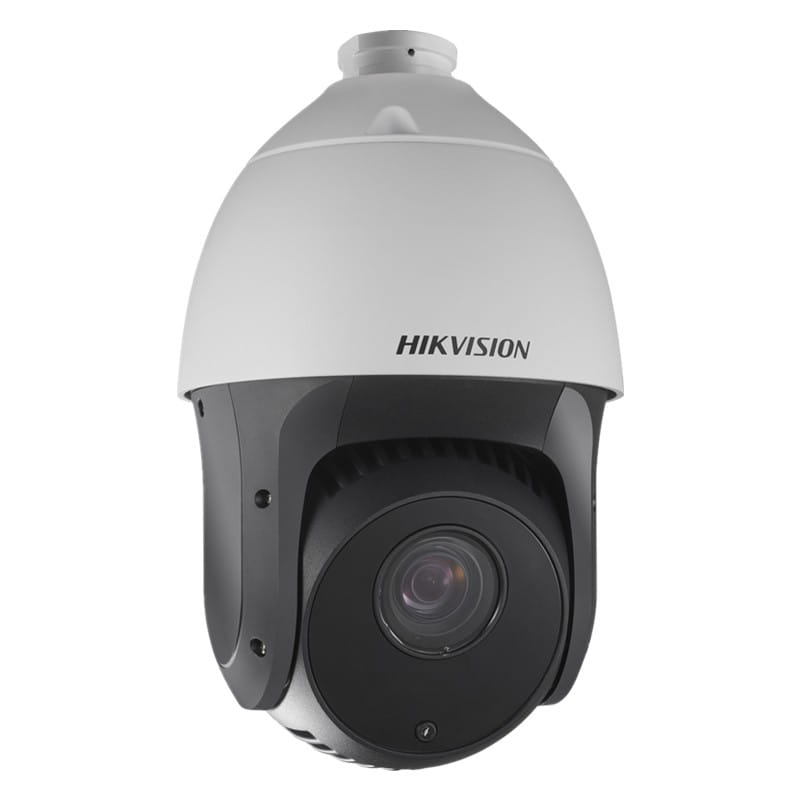

DS-2DE4215IW-DE (S5)
2 MP 15 x IR Network Speed Dome












Hikvision DS-2DE4215IW-DE (S5) 2 MP 15 x IR Network Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the 15 x
optical zoom lens, the camera offers more details over
expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as the rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.
 Accurate human and vehicle target classification and alarm
based on deep learning algorithm
 Support face capture. Up to 5 faces captured at the same time
 1/2.8" Progressive Scan CMOS
 Up to 1920 x 1080 @30fps resolution
 Min. illumination:
Color: 0.005Lux @ (F1.6, AGC ON),
B/W: 0.001Lux @(F1.6, AGC ON),
0 Lux with IR
 15 x optical zoom, 16 x digital zoom
 WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional
Focus
 Up to 100 m IR distance
 12VDC & POE (802.3at)
 Support H.265+/H.265 video compression




 Specification
Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005Lux @ (F1.6, AGC ON); B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Slow Shutter yes
Focus semi-auto, manual, auto
Day & Night ICR
Day/Night Switch auto
BLC yes
WDR 120 dB WDR
HLC yes
3D DNR yes
Defog yes
EIS yes
Regional Exposure yes
Regional Focus yes
Image Settings saturation, brightness, contrast, sharpness
White Balance auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16 x
Optical Zoom 15 x
Privacy Mask up to 24 masks,polygon region ,mosaic mask ,mask color configurable
SNR >52dB
Lens
Focal Length 5 mm to 75 mm, 15 x Optical
Zoom Speed approx.2.3s
FOV
Horizontal field of view: 53.8° to 4° (wide-tele),
Vertical field of view: 31.9° to 2.3° (wide-tele),
Diagonal field of view: 60.4° to 4.6° (wide-tele)
Aperture F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90°(auto flip)
Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory yes
Park Action
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
Scheduled Task
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 1920 x 1080
Stream Type main stream, sub-stream, third stream
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type baseline profile, main profile, high profile



H.265 Type main profile
H.264+ yes
H.265+ yes
SVC yes
ROI
dynamic face tracking, fixed region, main stream, sub-stream and third stream
respectively support eight fixed areas
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit rate
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128
kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering yes
Smart Features
Face Capture yes
Basic Event audio exception, motion detection, exception
Smart Event
intrusion detection, line crossing detection, region entrance detection, region exiting
detection, unattended baggage detection, object removal detection
Smart Record ANR, Dual-VCA
Alarm Linkage
preset, patrol scan, pattern scan, memory card video recording, alarm output, sending
email, notify surveillance center, upload to FTP
Network
Network Storage NAS (NFS, SMB/ CIFS), ANR
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP
Simultaneous Live View 20
User/Host 32
Smooth Streaming yes
Security Measures
Authenticated username and password, MAC address binding, HTTPS encryption,
802.1X authenticated access, IP address filter
Client iVMS-4200
Web Browser IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input 1 alarm input
Alarm Output 1 alarm output
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,
Audio Output 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance 100 m
General
Power 12 VDC, PoE (802.3at)
Power Consumption and
Current
Max. 24 W, including max. 9 W for supplement light
Operating Conditions -30°C to 65°C (-22°F to 149°F)
Reset yes
Material ADC 12, PC, PC+10% GF
Dimensions Φ 164.5 mm x 290 mm (Φ 6.48" x 11.42")
Weight Approx. 2 kg (4.41 lb)
Approval
Protection IP66, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection


 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.




DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance(Tele) 960 m (3149.6 ft) 381.0 m (1250.0 ft) 192.0 m (630.0 ft) 96.0 m (315.0 ft)

 Dimension



 Accessory
 Included



DS-1618ZJ
Wall Mount
ASW0081-1220002W
 Optional






DS-1682ZJ
Extendable Pole for
Pendant Mount
DS-1602ZJ
Wall Mount
DS-1604ZJ-box
Wall mount with
junction box
DS-1604ZJ
Wall mount with
junction box


DS-1604ZJ-BOX-CORNER
Wall Mount with
junction box
DS-1604ZJ-pole
Vertical Pole Mount
DS-1604ZJ-BOX-POLE
Vertical Pole Mount with
junction box
DS-1604ZJ-corner
Corner Mount







DS-1661ZJ
Pendant Mount
DS-1662ZJ
Pendant Mount
DS-1663ZJ
Ceiling Mount
DS-1673ZJ
Horizontal Pole Mount



DS-1681ZJ
Installation Adapter
DS-1619ZJ
Gooseneck Mount
DS-1660ZJ
Parapet wall mount
DS-1667ZJ
Extendable Pole for
Pendant Mount





DS-1100KI
Network Keyboard
LAS60-57CN-RJ45
Hi-PoE midspan
DS-1005KI
USB Joy-stick

*DS-1673ZJ should be used with DS-1661ZJ or DS-1602ZJ.















 Available Model
DS-2DE4215IW-DE (S5)
05052320200730
