DS-2DE4A425IW-DE(S6)

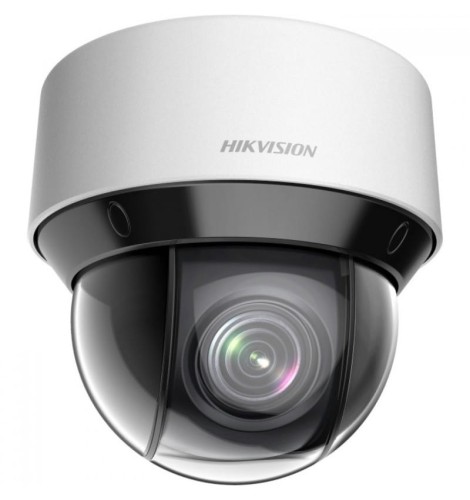

4 MP Network IR PTZ Camera











Hikvision DS-2DE4A425IW-DE(S6) 4 MP Network IR PTZ
Camera adopts 1/2.8" progressive scan CMOS chip. With the
25 x optical zoom lens, the camera offers more details over
expansive areas. This series of cameras can be widely used
for wide ranges of high-definition, such as rivers, forests,
roads, railways, airports, ports, squares, parks, scenic spots,
stations and large venues, etc.

 High quality imaging with 4 MP resolution
 Excellent low-light performance via
powered-by-DarkFighter technology
 Clear imaging against strong back lighting due to 120 dB
WDR technology
 Pan and tilt ability enables camera to monitor zones of
interest
 25x optical zoom allows for closer viewing of subjects in
expansive areas
 Up to 50 m IR range ensures safety at night
 Water and dust resistant (IP66)





 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 2200 m (7217.8 ft) 873 m (2864.2 ft) 440 m (1443.6 ft) 220 m (721.8 ft)

 Specification
Camera Module
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 2560 x 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 25x optical, 16x digital
Slow Shutter Yes
Lens
Focal Length 4.8 to 120 mm
FOV Horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°
Focus Auto, semi-auto, manual
Aperture Max. F1.6
Zoom Speed Approx. 3.4 s
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
PTZ
Movement Range (Pan) 0° to 360°
Movement Range (Tilt) -5° to 90°
Pan Speed Pan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s
Tilt Speed Tilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s
Proportional Zoom Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust



Power-off Memory Yes
Video
Main Stream
50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720);
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288);
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16
-64Kbps(AAC)
Audio Sampling Rate
AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32
kHz, 64 kHz
Environment Noise Filtering Yes
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API
Open Network Video Interface (Version 18.12), Profile S, Profile G, Profile T), ISAPI,
SDK, ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2,
host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
Image Parameters Switch Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR >52dB
Defog Digital defog
Image Stabilization EIS



Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Alarm 2 inputs, 2 outputs
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event
Face detection, line crossing detection, intrusion detection, region entrance detection,
region exiting detection, unattended baggage detection, object removal detection,
audio exception detection
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking Manual tracking, auto-tracking
General
Power 12 VDC, Max. 18 W; PoE (802.3at)
Dimension Ø 169 mm x 161 mm (Ø 6.65" x 6.34")
Weight Approx. 2.45 kg (5.40 lb.)
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection
Approval
Protection
IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage
transient protection



 Available Model
DS-2DE4A425IW-DE (S6)



 Dimension





 Accessory
 Included
KPL-040F-VI
Power adapter


 Optional
DS-1691ZJ-M DS-1605ZJ DS-1671ZJ-SD11 DS-1280ZJ-SD11 DS-1691ZJ-L








DS-1691ZJ DS-1275ZJ-SUS DS-1276ZJ-SUS LAS60-57CN-RJ45 DS-1100KI



DS-1005KI
