DS-2DE5232W-AE (E)
2 MP 32 x Network Speed Dome

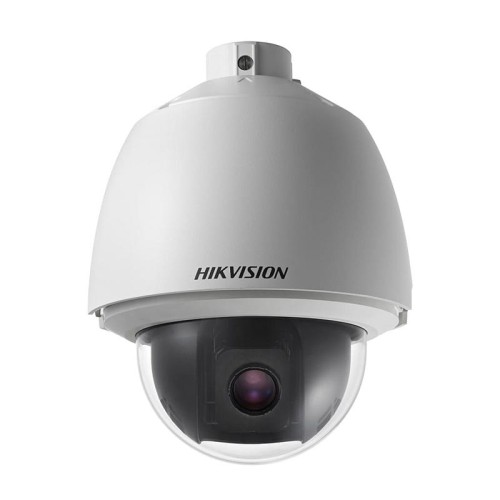

Hikvision DS-2DE5232W-AE (E) 2 MP 32x Network Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the
32 x optical zoom lens, the camera offers more details over
expansive areas.
This series of cameras can be widely used for wide ranges
of high-definition, such as the rivers, roads, railways,
airports, squares, parks, scenic spots, and venues.
● 1/2.8"progressive scan CMOS
● High quality imaging with 2 MP resolution
● Excellent low-light performance via powered-by-
DarkFighter technology
● Clear imaging against strong back lighting due to 120 dB
WDR technology
● 32x optical zoom allows for closer viewing of subjects in
expansive areas
● Efficient H.265+/H.265 compression technology
● 24 VAC & PoE (802.3 at, class4)
● Water and dust resistant (IP66) and vandal resistant
(IK10)





Specifications

Camera Module
Image Sensor 1/2.8"progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time
50Hz: 1 to 1/30,000 s
60Hz: 1 to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16 x
Privacy Mask 24 programmable privacy masks, mask color configurable
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 4.8 to 153 mm, 32 x optical zoom
Zoom Speed Approx. 5.6 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 55.6° to 2.04° (Wide-Tele)
Vertical field of view: 32.4° to 1.14° (Wide-Tele)
Diagonal field of view: 63° to 2.34° (Wide-Tele)
Working Distance 10 to 1500 mm (wide-tele)
Aperture Range F1.2 to F4.4
PTZ
Movement Range (Pan) 360° endless
Pan Speed
Configurable, from 0.1°/s to 250°/s
Preset speed: 300°/s
Movement Range (Tilt) From -5° to 90° (auto-flip)
Tilt Speed
Configurable, from 0.1°/s to 150°/s
Preset speed: 200°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan
3D Positioning Yes
PTZ Position Display Yes
Preset Freezing Yes
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output



Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline profile/main profile/high profile
H.264+ Yes
H.265 Type Baseline profile/main profile/high profile
H.265+ Yes
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate
G.711alaw/G.711ulaw: 64 Kbps
G.722.1/G.726: 16 Kbps
MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
SVC Yes
Smart Features
Basic Event Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
Smart Event
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance
Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage
Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
Auto-Tracking Yes
Max. Resolution 1920 x 1080
Main Stream
50Hz: 50fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 60fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement HLC, BLC, defog, 3D DNR, EIS, regional exposure, regional focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS,
SMB/ CIFS), ANR
Alarm Linkage
Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger
Recording, Recording Linkage, and Alarm Input.
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users
3 user levels: administrator, operator and user



Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Alarm Interface 2-ch alarm input and 1-ch alarm output
Audio Interface 1-ch audio input and 1-ch audio output
Network Interface 1 RJ45 10 M/100 M Ethernet, PoE (802.3 at, class4)
General
Language (Web Browser Access)
32 languages.
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
24 VAC, 1.5 A, 50/60Hz and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4
Max. 22 W
Working Environment Temperature: -30°C to 65°C (-22°F to 149°F), humidity: ≤ 90%
Protection Level
IP66 Standard, IK10, 4000V Lightning Protection, Surge Protection and Voltage
Transient Protection
Material ADC 12, PC+ABS, PC/PMMA
Dimension Φ 220 mm x 280 mm (Φ 8.66" x 11.02")
Weight Approx. 3 kg (6.61 lb.)

DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 1963.6 m (6442.4 ft) 779.2 m (2556.5 ft) 392.7 m (1288.5 ft) 196.4 m (644.2 ft)

Available Model
DS-2DE5232W-AE (E), 24 VAC & PoE (802.3 at, class4)



Dimensions

Accessory
Included

DS-1602ZJ
Wall Mount
Optional



DS-1604ZJ-Box-Corner
Wall Mount with Junction
Box
DS-1604ZJ-Box
Wall Mount with Junction
Box
DS-1604ZJ
Wall Mount
DS-1619ZJ
Gooseneck Mount



DS-1682ZJ
Extendable Pole for Pendant
Mount
DS-1604ZJ-pole
Vertical Pole Mount
DS-1604ZJ-Box-Pole
Vertical Pole Mount with
Junction Box
DS-1604ZJ-Corner
Corner Mount

DS-1661ZJ
Pendant Mount
DS-1663ZJ
Ceiling Mount
DS-1681ZJ
Installation Adapter
DS-1673ZJ
Horizontal Pole Mount




05060020200908



DS-1660ZJ
Parapet Wall Mount
DS-1662ZJ
Pendant Mount
DS-1667ZJ
Extendable Pole for Pendant
Mount
HKA-A24250-230(EU)
HKKD-12077(USA)
HKA-A24250-230-BS(UK)
PSE-A1525/5060(JP)
Power Adapter




DS-1005KI
USB Joy-stick
LAS60-57CN-RJ45
Hi-PoE midspan
DS-1100KI
Network Keyboard



*DS-1673ZJ should be used with DS-1661ZJ or DS-1602ZJ.
