DS-2DE7425IW-AE(S5)

Hikvision DS-2DE7425IW-AE 4MP 25x Network IR Speed  Dome adopts 1/2.5" progressive scan CMOS chip. With  the 25x optical zoom lens, the camera offers more details  over expansive areas.  This series of cameras can be widely used for wide  ranges of high-definition, such as the rivers, roads,  railways, airports, squares, parks, scenic spots, and  venues, etc.    Key Features  * 1/2.5" progressive scan CMOS  * Up to 2560 x 1440@30fps resolution  * Min. illumination:  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  * 25x optical zoom, 16x digital zoom  * WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional  Exposure, Regional Focus  * Up to 150 m IR distance  * 24 VAC & Hi-PoE  * Support H.265+/H.265 video compression        DS-2DE7425IW-AE  4MP 25x Network IR Speed Dome        Specification  Camera Module  Image Sensor 1/2.5" progressive scan CMOS  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001Lux @(F1.6, AGC ON)  0 Lux with IR  White Balance  Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent  Lamp/Sodium Lamp  Gain Auto/Manual  Shutter ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2DE7A425IW-AEB(T5)

Ersatzproduktcode: 327000242

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

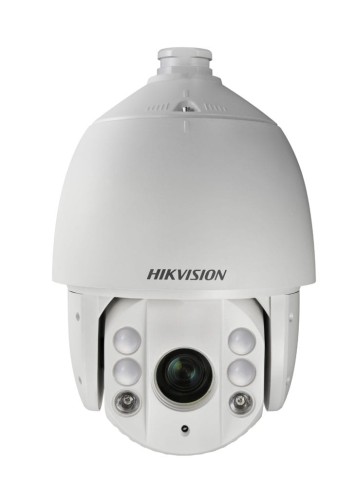

Hikvision DS-2DE7425IW-AE 4MP 25x Network IR Speed
Dome adopts 1/2.5" progressive scan CMOS chip. With
the 25x optical zoom lens, the camera offers more details
over expansive areas.
This series of cameras can be widely used for wide
ranges of high-definition, such as the rivers, roads,
railways, airports, squares, parks, scenic spots, and
venues, etc.

Key Features
* 1/2.5" progressive scan CMOS
* Up to 2560 x 1440@30fps resolution
* Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
* 25x optical zoom, 16x digital zoom
* WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional
Exposure, Regional Focus
* Up to 150 m IR distance
* 24 VAC & Hi-PoE
* Support H.265+/H.265 video compression



DS-2DE7425IW-AE
4MP 25x Network IR Speed Dome



Specification
Camera Module
Image Sensor 1/2.5" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR (not supported by full frame rate)
Lens
Focal Length 4.8 mm to 120 mm, 25x optical zoom
Zoom Speed Approx. 3.6 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 59.5° to 2.6° (Wide-Tele)
Vertical field of view: 35.7° to 1.5° (Wide-Tele)
Diagonal field of view: 66.6 to 3.0° (Wide-Tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
IR
IR Distance 150 m
Smart IR Support
PTZ
Movement Range (Pan) 360° endless
Pan Speed
Configurable, from 0.1°/s to 160°/s,
Preset speed: 240°/s
Movement Range (Tilt) From -15° to 90° (auto-flip)
Tilt Speed Configurable, from 0.1°/s to 120°/s
Preset Speed: 200°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan
3D Positioning Support
PTZ Position Display Support
Preset Freezing Support
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile



H.264+ Support
H.265 Type Baseline Profile/Main Profile/High Profile
H.265+ Support
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate
G.711alaw/G.711ulaw: 64 Kbps
G.722.1/G.726: 16 Kbps
MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
SVC Support
Smart Features
Basic Event Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
Smart Event
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection,
Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio
Exception Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
Smart Tracking Auto Tracking, Panorama Tracking, Event Tracking
Max. Resolution 2560 x 1440
Main Stream
50Hz: 25fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720)
50fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720)
60fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576,
640 x 480, 352 x 288)
60Hz: 30fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480,
640 x 480, 352 x 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Alarm Linkage Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger
Recording, Recording Linkage, and Alarm Input, etc.
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Alarm Interface 2-ch alarm input and 1-ch alarm output
Audio Interface 1-ch audio input and 1-ch audio output
Network Interface 1 RJ45 10 M/100 M Ethernet, Hi-PoE
General
Power
24 VAC and Hi-PoE
Max.: 40 W (Max. 16 W for IR)



Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level
IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material ADC 12, PC+10% GF
Dimensions Φ 220 mm x 353.4 mm (Φ 8.66" x 13.91")
Weight Approx. 4.5 kg (9.92 lb)

Available Model
DS-2DE7425IW-AE, 24 VAC & Hi-PoE

Dimensions
Unit: mm
3
5
3
.
4
Φ
2
2
0
Φ47
1
0
2
0










0505121071212
Accessories

DS-1602ZJ Wall Mounting Bracket

DS-1602ZJ-corner Corner Mounting Bracket

DS-1602ZJ-pole Vertical Pole Mounting Bracket

DS-1602ZJ-box Wall Mounting Bracket with Junction Box

DS-1663ZJ Ceiling Mounting Bracket

DS-1661ZJ Pendant Mounting Bracket

DS-1662ZJ Pendant Mounting Bracket

DS-1619ZJ Gooseneck Mounting Bracket

DS-1100KI Network Keyboard

DS-1005KI USB Joy-stick
